ZU120MZ3 RBC

Brand - RBC
Item Number - ZU120MZ3*RBC
Category - SIMPLEX™ Series Thin Section Ball Bearings

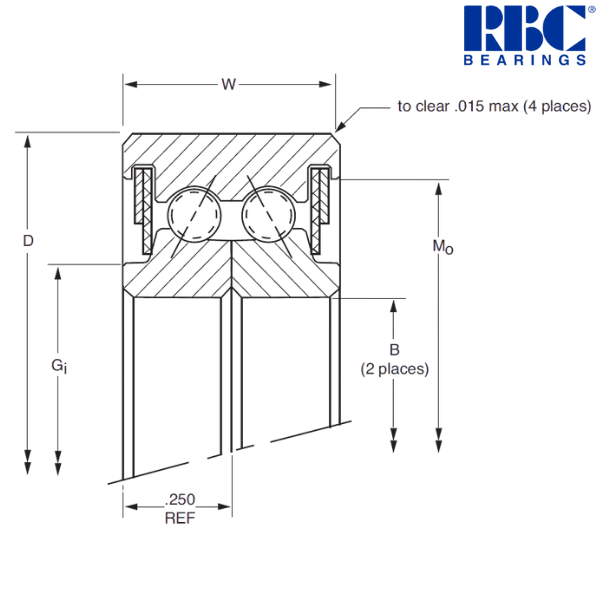

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 12 inch
Outside Diameter (D) - 12.75 inch
Width (W) - 0.5 inch
Recess Diameter (Gi) - 12.155 inch
Groove Diameter (Mo) - 12.55 inch
Ball Diameter - 0.125 inch
Ball Quantity - 154 pcs
Approximate Weight - 1.56 lbs
Radial Static Load - 2515 lbf
Radial Dynamic Load - 935 lbf
Thrust Static Load - 7545 lbf
Thrust Dynamic Load - 2720 lbf
Moment Static Load - 31560 lbf-in
Moment Dynamic Load - 8330 lbf-in

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 304.8 mm
Outside Diameter (D) - 323.85 mm
Width (W) - 12.7 mm
Recess Diameter (Gi) - 308.74 mm
Groove Diameter (Mo) - 318.77 mm
Approximate Weight - 0.708 kg
Radial Static Load - 11190 N
Radial Dynamic Load - 4160 N
Thrust Static Load - 33560 N
Thrust Dynamic Load - 12100 N
Moment Static Load - 3570 Nm
Moment Dynamic Load - 940 Nm

Description of Suffixes and Prefixes :
U - Extra Extended Width
M - Double Angular Ball Contact
3 - ABEC 3F

Other salient point to be noted :
* Radial load rating is two times the value per row ideally if both rows share load equally.
