ZU110MZ3 RBC

Brand - RBC
Item Number - ZU110MZ3*RBC
Category - SIMPLEX™ Series Thin Section Ball Bearings

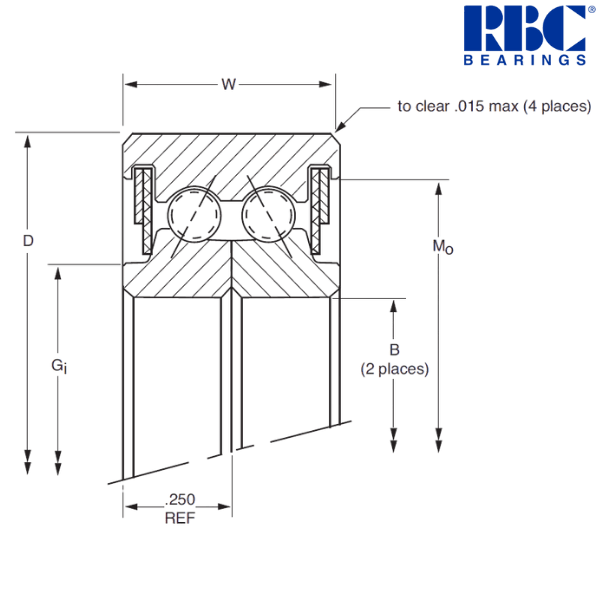

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 11 inch
Outside Diameter (D) - 11.75 inch
Width (W) - 0.5 inch
Recess Diameter (Gi) - 11.155 inch
Groove Diameter (Mo) - 11.55 inch
Ball Diameter - 0.125 inch
Ball Quantity - 141 pcs
Approximate Weight - 1.43 lbs
Radial Static Load - 2300 lbf
Radial Dynamic Load - 905 lbf
Thrust Static Load - 6915 lbf
Thrust Dynamic Load - 2625 lbf
Moment Static Load - 26620 lbf-in
Moment Dynamic Load - 7235 lbf-in

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 279.4 mm
Outside Diameter (D) - 298.45 mm
Width (W) - 12.7 mm
Recess Diameter (Gi) - 283.34 mm
Groove Diameter (Mo) - 293.37 mm
Approximate Weight - 0.649 kg
Radial Static Load - 10230 N
Radial Dynamic Load - 4030 N
Thrust Static Load - 30760 N
Thrust Dynamic Load - 11680 N
Moment Static Load - 3010 Nm
Moment Dynamic Load - 820 Nm

Description of Suffixes and Prefixes :
U - Extra Extended Width
M - Double Angular Ball Contact
3 - ABEC 3F

Other salient point to be noted :
* Radial load rating is two times the value per row ideally if both rows share load equally.

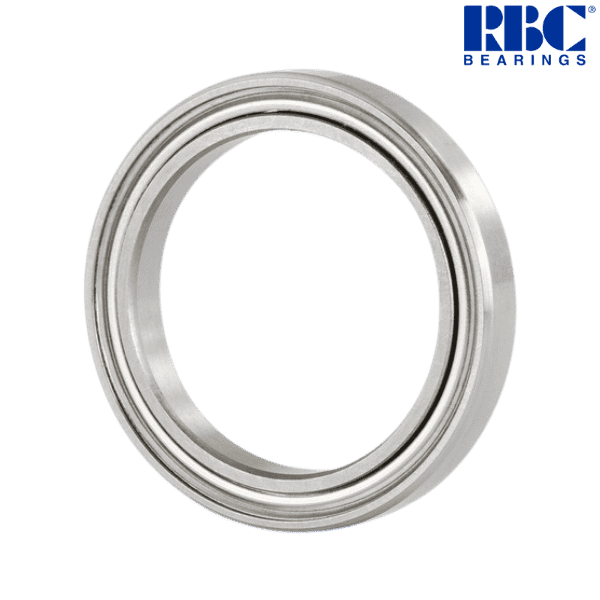

♦ ♦ Images are for representation purposes only
