ZU100MZ3 RBC

Brand - RBC
Item Number - ZU100MZ3*RBC
Category - SIMPLEX™ Series Thin Section Ball Bearings

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 10 inch
Outside Diameter (D) - 10.75 inch
Width (W) - 0.5 inch
Recess Diameter (Gi) - 10.155 inch
Groove Diameter (Mo) - 10.55 inch
Ball Diameter - 0.125 inch
Ball Quantity - 129 pcs
Approximate Weight - 1.31 lbs
Radial Static Load - 2110 lbf
Radial Dynamic Load - 875 lbf
Thrust Static Load - 6330 lbf
Thrust Dynamic Load - 2550 lbf
Moment Static Load - 22290 lbf-in
Moment Dynamic Load - 6250 lbf-in

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 254 mm
Outside Diameter (D) - 273.05 mm
Width (W) - 12.7 mm
Recess Diameter (Gi) - 257.94 mm
Groove Diameter (Mo) - 267.97 mm
Approximate Weight - 0.594 kg
Radial Static Load - 9390 N
Radial Dynamic Load - 3890 N
Thrust Static Load - 28160 N
Thrust Dynamic Load - 11340 N
Moment Static Load - 2520 Nm
Moment Dynamic Load - 710 Nm

Description of Suffixes and Prefixes :
U - Extra Extended Width
M - Double Angular Ball Contact
3 - ABEC 3F

Other salient point to be noted :
* Radial load rating is two times the value per row ideally if both rows share load equally.

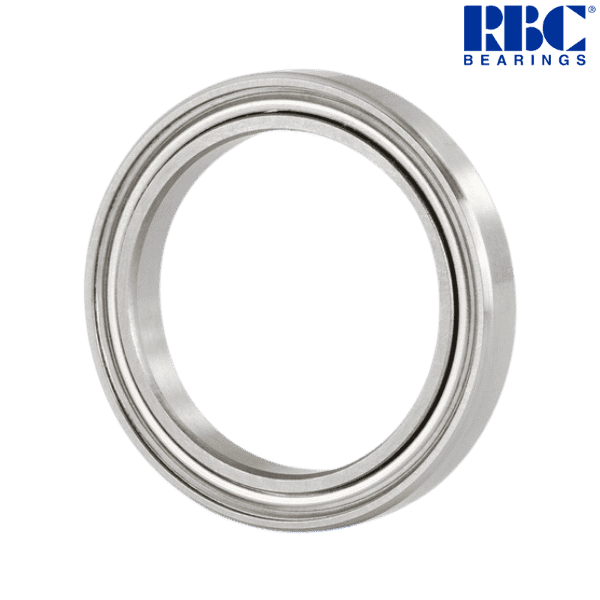

♦ ♦ Images are for representation purposes only
