ZU090MZ3 RBC

Brand - RBC
Item Number - ZU090MZ3*RBC
Category - SIMPLEX™ Series Thin Section Ball Bearings

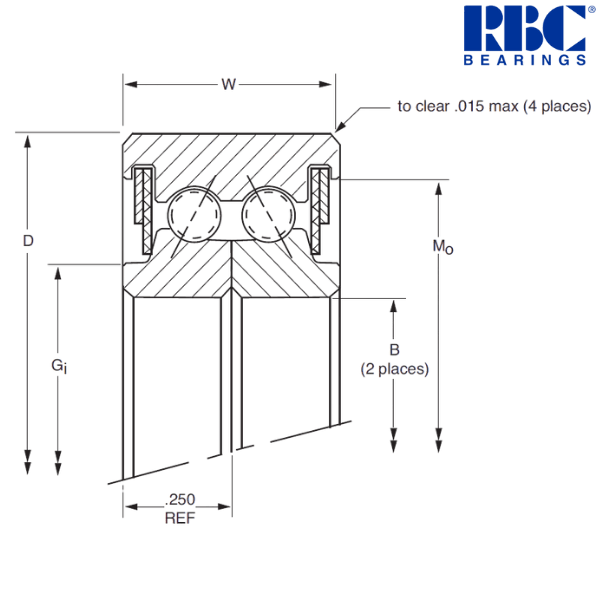

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 9 inch
Outside Diameter (D) - 9.75 inch
Width (W) - 0.5 inch
Recess Diameter (Gi) - 9.155 inch
Groove Diameter (Mo) - 9.55 inch
Ball Diameter - 0.125 inch
Ball Quantity - 116 pcs
Approximate Weight - 1.18 lbs
Radial Static Load - 1905 lbf
Radial Dynamic Load - 840 lbf
Thrust Static Load - 5705 lbf
Thrust Dynamic Load - 2420 lbf
Moment Static Load - 18180 lbf-in
Moment Dynamic Load - 5275 lbf-in

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 228.6 mm
Outside Diameter (D) - 247.65 mm
Width (W) - 12.7 mm
Recess Diameter (Gi) - 232.54 mm
Groove Diameter (Mo) - 242.57 mm
Approximate Weight - 0.535 kg
Radial Static Load - 8470 N
Radial Dynamic Load - 3740 N
Thrust Static Load - 25380 N
Thrust Dynamic Load - 10760 N
Moment Static Load - 2050 Nm
Moment Dynamic Load - 600 Nm

Description of Suffixes and Prefixes :
U - Extra Extended Width
M - Double Angular Ball Contact
3 - ABEC 3F

Other salient point to be noted :
* Radial load rating is two times the value per row ideally if both rows share load equally.

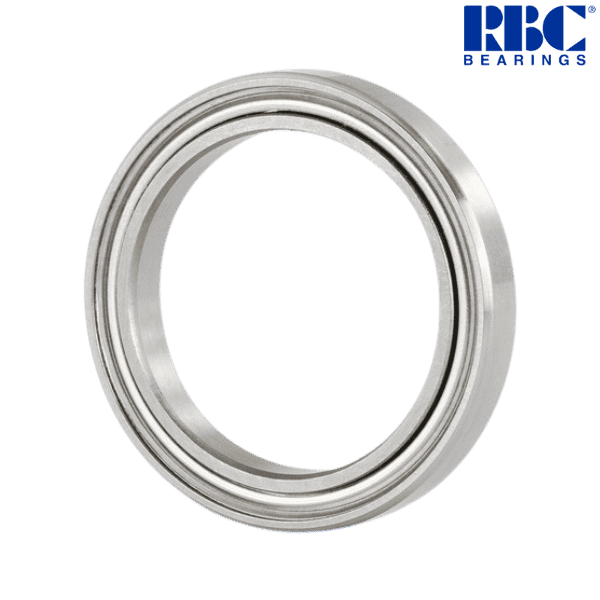

♦ ♦ Images are for representation purposes only
