ZU080MZ3 RBC

Brand - RBC
Item Number - ZU080MZ3*RBC
Category - SIMPLEX™ Series Thin Section Ball Bearings

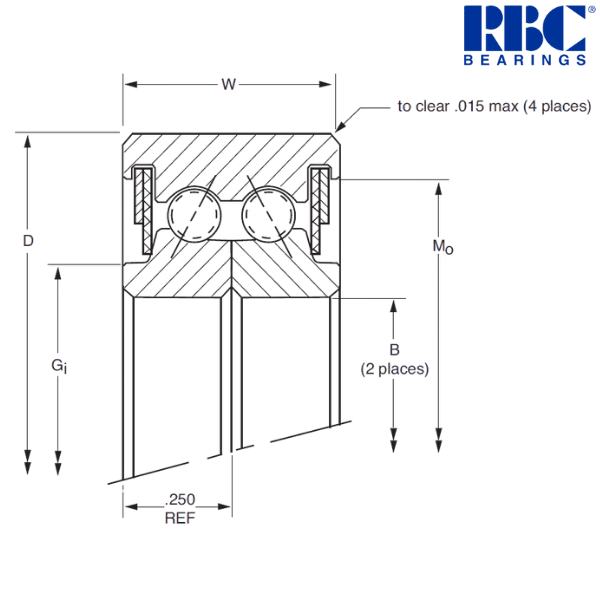

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 8 inch
Outside Diameter (D) - 8.75 inch
Width (W) - 0.5 inch
Recess Diameter (Gi) - 8.155 inch
Groove Diameter (Mo) - 8.55 inch
Ball Diameter - 0.125 inch
Ball Quantity - 104 pcs
Approximate Weight - 1.06 lbs
Radial Static Load - 1710 lbf
Radial Dynamic Load - 815 lbf
Thrust Static Load - 5130 lbf
Thrust Dynamic Load - 2350 lbf
Moment Static Load - 14630 lbf-in
Moment Dynamic Load - 4405 lbf-in

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 203.2 mm
Outside Diameter (D) - 222.25 mm
Width (W) - 12.7 mm
Recess Diameter (Gi) - 207.14 mm
Groove Diameter (Mo) - 217.17 mm
Approximate Weight - 0.481 kg
Radial Static Load - 7610 N
Radial Dynamic Load - 3630 N
Thrust Static Load - 22820 N
Thrust Dynamic Load - 10450 N
Moment Static Load - 1650 Nm
Moment Dynamic Load - 500 Nm

Description of Suffixes and Prefixes :
U - Extra Extended Width
M - Double Angular Ball Contact
3 - ABEC 3F

Other salient point to be noted :
* Radial load rating is two times the value per row ideally if both rows share load equally.

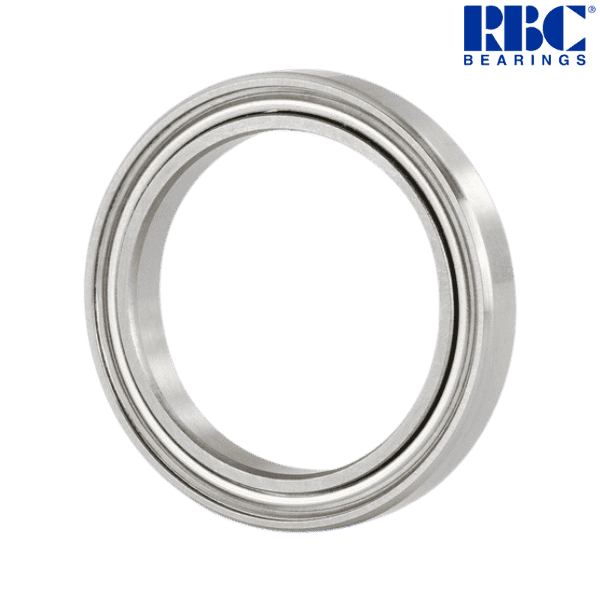

♦ ♦ Images are for representation purposes only
