ZU075MZ3 RBC

Brand - RBC
Item Number - ZU075MZ3*RBC
Category - SIMPLEX™ Series Thin Section Ball Bearings

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 7.5 inch
Outside Diameter (D) - 8.25 inch
Width (W) - 0.5 inch
Recess Diameter (Gi) - 7.655 inch
Groove Diameter (Mo) - 8.05 inch
Ball Diameter - 0.125 inch
Ball Quantity - 97 pcs
Approximate Weight - 0.99 lbs
Radial Static Load - 1600 lbf
Radial Dynamic Load - 775 lbf
Thrust Static Load - 4780 lbf
Thrust Dynamic Load - 2250 lbf
Moment Static Load - 12870 lbf-in
Moment Dynamic Load - 3950 lbf-in

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 190.5 mm
Outside Diameter (D) - 209.55 mm
Width (W) - 12.7 mm
Recess Diameter (Gi) - 194.44 mm
Groove Diameter (Mo) - 204.47 mm
Approximate Weight - 0.449 kg
Radial Static Load - 7120 N
Radial Dynamic Load - 3450 N
Thrust Static Load - 21260 N
Thrust Dynamic Load - 10010 N
Moment Static Load - 1450 Nm
Moment Dynamic Load - 450 Nm

Description of Suffixes and Prefixes :
U - Extra Extended Width
M - Double Angular Ball Contact
3 - ABEC 3F

Other salient point to be noted :
* Radial load rating is two times the value per row ideally if both rows share load equally.

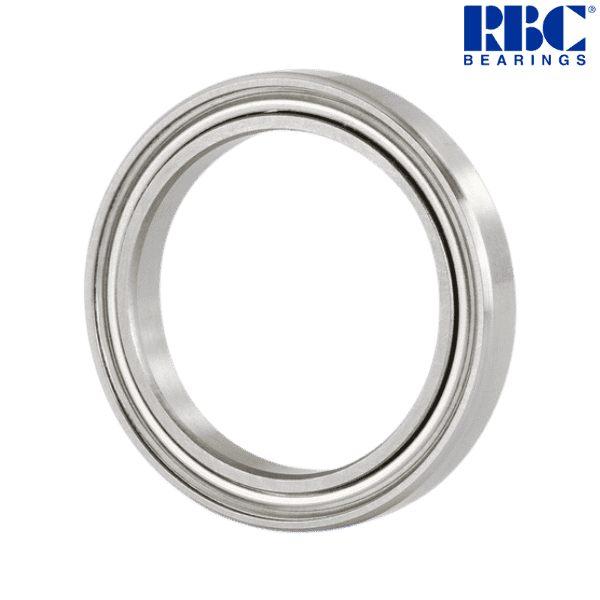

♦ ♦ Images are for representation purposes only
