ZU070MZ3 RBC

Brand - RBC
Item Number - ZU070MZ3*RBC
Category - SIMPLEX™ Series Thin Section Ball Bearings

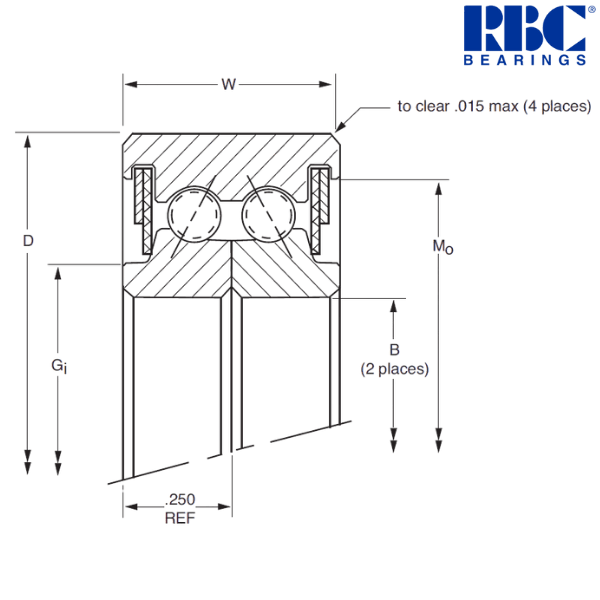

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 7 inch
Outside Diameter (D) - 7.75 inch
Width (W) - 0.5 inch
Recess Diameter (Gi) - 7.155 inch
Groove Diameter (Mo) - 7.55 inch
Ball Diameter - 0.125 inch
Ball Quantity - 91 pcs
Approximate Weight - 0.93 lbs
Radial Static Load - 1500 lbf
Radial Dynamic Load - 760 lbf
Thrust Static Load - 4495 lbf
Thrust Dynamic Load - 2200 lbf
Moment Static Load - 11340 lbf-in
Moment Dynamic Load - 3565 lbf-in

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 177.8 mm
Outside Diameter (D) - 196.85 mm
Width (W) - 12.7 mm
Recess Diameter (Gi) - 181.74 mm
Groove Diameter (Mo) - 191.77 mm
Approximate Weight - 0.422 kg
Radial Static Load - 6670 N
Radial Dynamic Load - 3380 N
Thrust Static Load - 19990 N
Thrust Dynamic Load - 9790 N
Moment Static Load - 1280 Nm
Moment Dynamic Load - 400 Nm

Description of Suffixes and Prefixes :
U - Extra Extended Width
M - Double Angular Ball Contact
3 - ABEC 3F

Other salient point to be noted :
* Radial load rating is two times the value per row ideally if both rows share load equally.

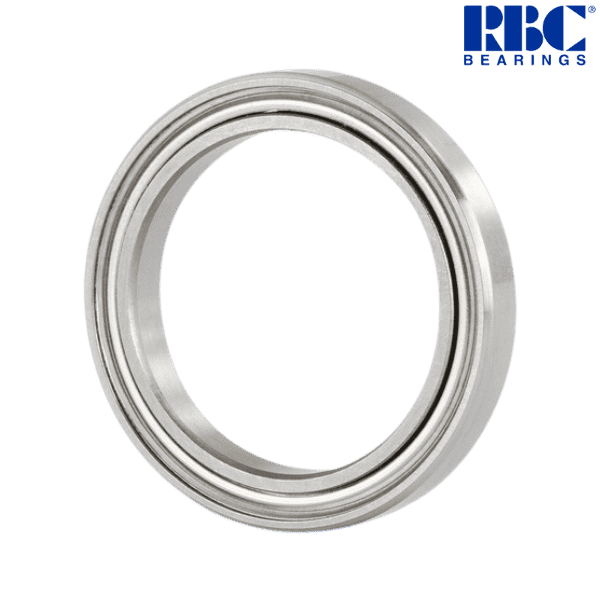

♦ ♦ Images are for representation purposes only
