ZU065MZ3 RBC

Brand - RBC
Item Number - ZU065MZ3*RBC
Category - SIMPLEX™ Series Thin Section Ball Bearings

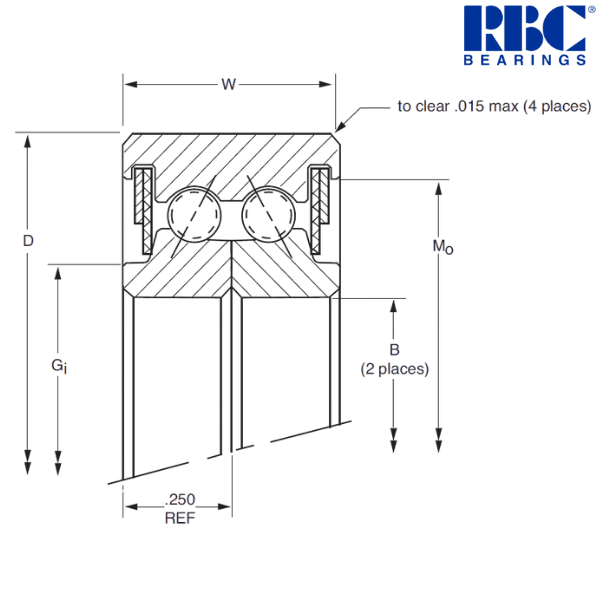

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 6.5 inch
Outside Diameter (D) - 7.25 inch
Width (W) - 0.5 inch
Recess Diameter (Gi) - 6.655 inch
Groove Diameter (Mo) - 7.05 inch
Ball Diameter - 0.125 inch
Ball Quantity - 85 pcs
Approximate Weight - 0.87 lbs
Radial Static Load - 1400 lbf
Radial Dynamic Load - 755 lbf
Thrust Static Load - 4210 lbf
Thrust Dynamic Load - 2185 lbf
Moment Static Load - 9910 lbf-in
Moment Dynamic Load - 3200 lbf-in

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 165.1 mm
Outside Diameter (D) - 184.15 mm
Width (W) - 12.7 mm
Recess Diameter (Gi) - 169.04 mm
Groove Diameter (Mo) - 179.07 mm
Approximate Weight - 0.395 kg
Radial Static Load - 6230 N
Radial Dynamic Load - 3360 N
Thrust Static Load - 18730 N
Thrust Dynamic Load - 9720 N
Moment Static Load - 1120 Nm
Moment Dynamic Load - 360 Nm

Description of Suffixes and Prefixes :
U - Extra Extended Width
M - Double Angular Ball Contact
3 - ABEC 3F

Other salient point to be noted :
* Radial load rating is two times the value per row ideally if both rows share load equally.

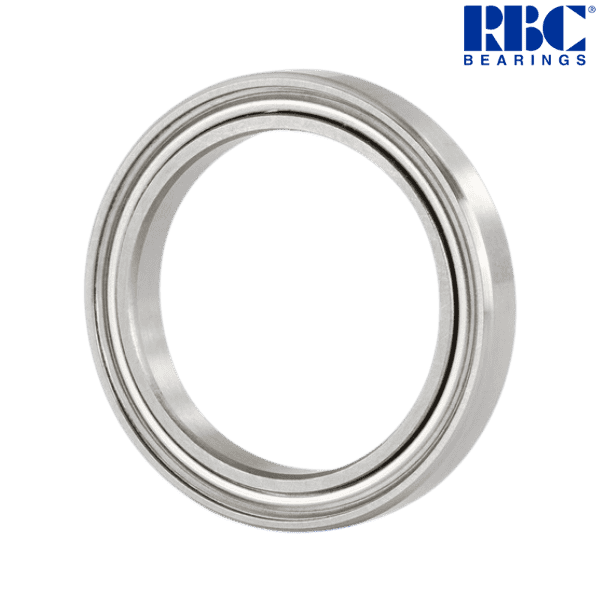

♦ ♦ Images are for representation purposes only
