ZU060MZ3 RBC

Brand - RBC
Item Number - ZU060MZ3*RBC
Category - SIMPLEX™ Series Thin Section Ball Bearings

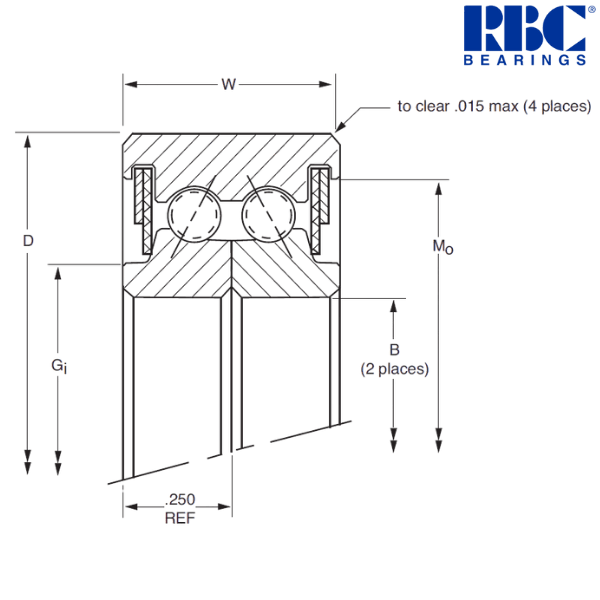

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 6 inch
Outside Diameter (D) - 6.75 inch
Width (W) - 0.5 inch
Recess Diameter (Gi) - 6.155 inch
Groove Diameter (Mo) - 6.55 inch
Ball Diameter - 0.125 inch
Ball Quantity - 79 pcs
Approximate Weight - 0.81 lbs
Radial Static Load - 1305 lbf
Radial Dynamic Load - 730 lbf
Thrust Static Load - 3925 lbf
Thrust Dynamic Load - 2125 lbf
Moment Static Load - 8575 lbf-in
Moment Dynamic Load - 2835 lbf-in

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 152.4 mm
Outside Diameter (D) - 171.45 mm
Width (W) - 12.7 mm
Recess Diameter (Gi) - 156.34 mm
Groove Diameter (Mo) - 166.37 mm
Approximate Weight - 0.367 kg
Radial Static Load - 5800 N
Radial Dynamic Load - 3250 N
Thrust Static Load - 17460 N
Thrust Dynamic Load - 9450 N
Moment Static Load - 970 Nm
Moment Dynamic Load - 320 Nm

Description of Suffixes and Prefixes :
U - Extra Extended Width
M - Double Angular Ball Contact
3 - ABEC 3F

Other salient point to be noted :
* Radial load rating is two times the value per row ideally if both rows share load equally.

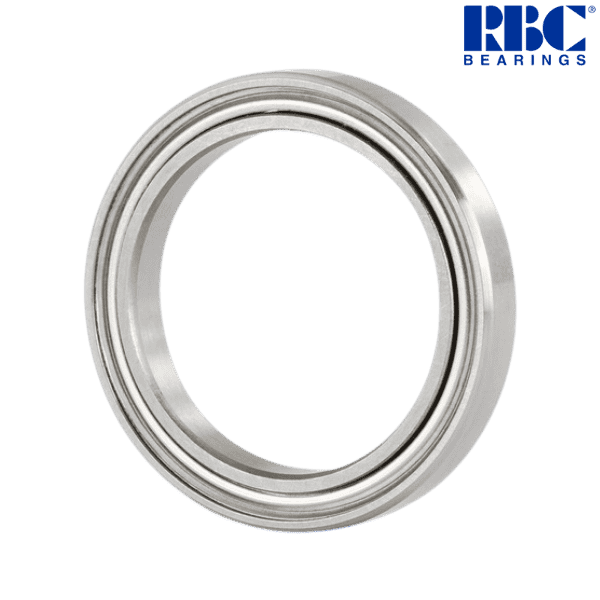

♦ ♦ Images are for representation purposes only
