ZU050MZ3 RBC

Brand - RBC
Item Number - ZU050MZ3*RBC
Category - SIMPLEX™ Series Thin Section Ball Bearings

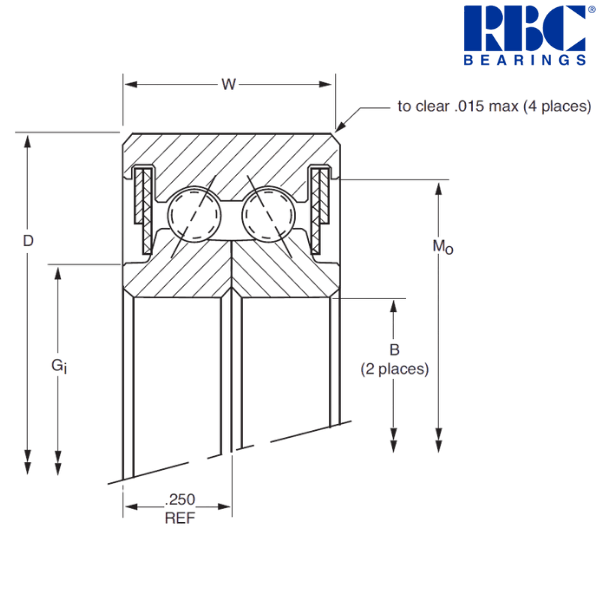

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 5 inch
Outside Diameter (D) - 5.75 inch
Width (W) - 0.5 inch
Recess Diameter (Gi) - 5.155 inch
Groove Diameter (Mo) - 5.55 inch
Ball Diameter - 0.125 inch
Ball Quantity - 66 pcs
Approximate Weight - 0.68 lbs
Radial Static Load - 1090 lbf
Radial Dynamic Load - 685 lbf
Thrust Static Load - 3285 lbf
Thrust Dynamic Load - 1995 lbf
Moment Static Load - 6105 lbf-in
Moment Dynamic Load - 2130 lbf-in

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 127 mm
Outside Diameter (D) - 146.05 mm
Width (W) - 12.7 mm
Recess Diameter (Gi) - 130.94 mm
Groove Diameter (Mo) - 140.97 mm
Approximate Weight - 0.308 kg
Radial Static Load - 4850 N
Radial Dynamic Load - 3050 N
Thrust Static Load - 14610 N
Thrust Dynamic Load - 8870 N
Moment Static Load - 690 Nm
Moment Dynamic Load - 240 Nm

Description of Suffixes and Prefixes :
U - Extra Extended Width
M - Double Angular Ball Contact
3 - ABEC 3F

Other salient point to be noted :
* Radial load rating is two times the value per row ideally if both rows share load equally.

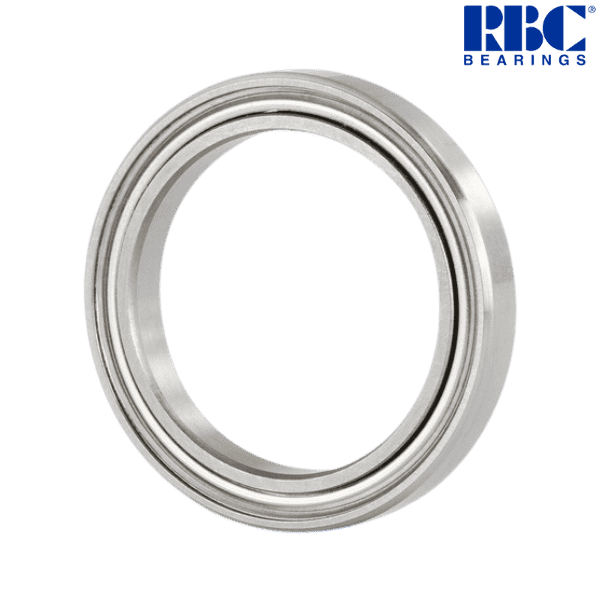

♦ ♦ Images are for representation purposes only
