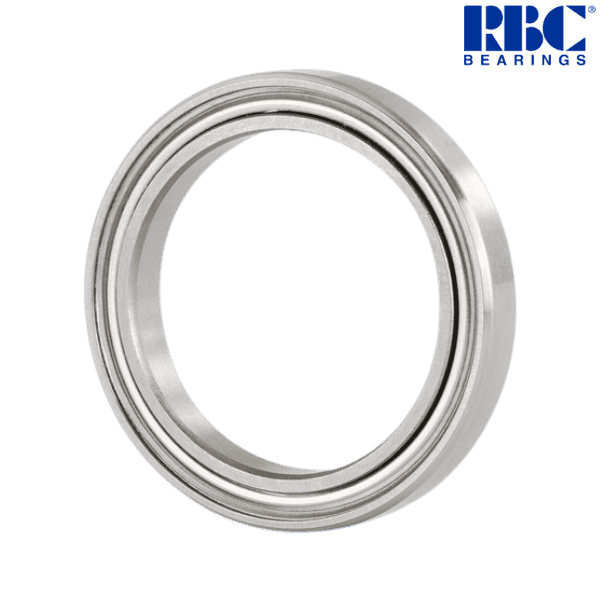

ZU042MZ3 RBC

Brand - RBC
Item Number - ZU042MZ3*RBC
Category - SIMPLEX™ Series Thin Section Ball Bearings

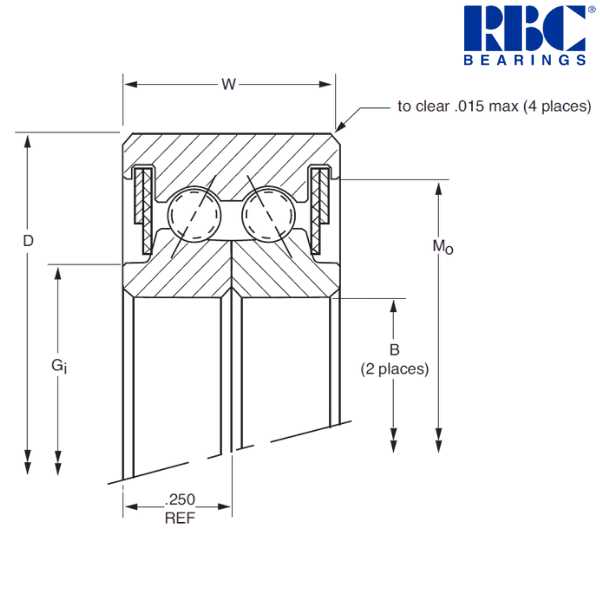

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 4.25 inch
Outside Diameter (D) - 5 inch
Width (W) - 0.5 inch
Recess Diameter (Gi) - 4.405 inch
Groove Diameter (Mo) - 4.8 inch
Ball Diameter - 0.125 inch
Ball Quantity - 57 pcs
Approximate Weight - 0.58 lbs
Radial Static Load - 950 lbf
Radial Dynamic Load - 655 lbf
Thrust Static Load - 2850 lbf
Thrust Dynamic Load - 1900 lbf
Moment Static Load - 4540 lbf-in
Moment Dynamic Load - 1670 lbf-in

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 107.95 mm
Outside Diameter (D) - 127 mm
Width (W) - 12.7 mm
Recess Diameter (Gi) - 111.89 mm
Groove Diameter (Mo) - 121.92 mm
Approximate Weight - 0.263 kg
Radial Static Load - 4230 N
Radial Dynamic Load - 2910 N
Thrust Static Load - 12680 N
Thrust Dynamic Load - 8450 N
Moment Static Load - 510 Nm
Moment Dynamic Load - 190 Nm

Description of Suffixes and Prefixes :
U - Extra Extended Width
M - Double Angular Ball Contact
3 - ABEC 3F

Other salient point to be noted :
* Radial load rating is two times the value per row ideally if both rows share load equally.
