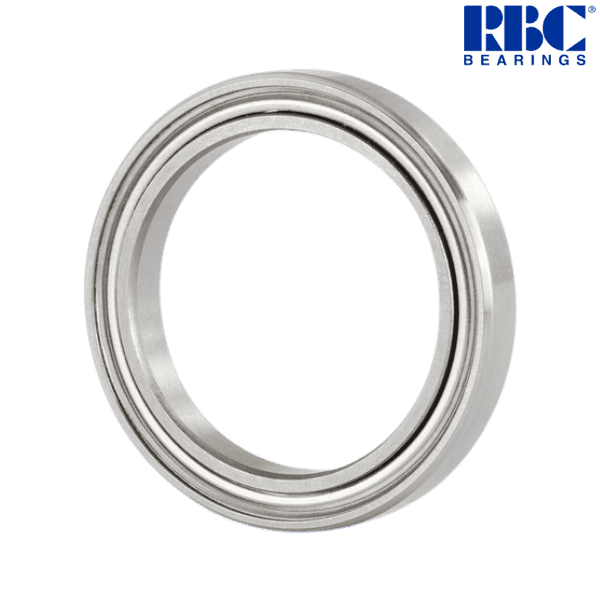

ZU040MZ3 RBC


Download Data Sheet
Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Description

Brand - RBC
Item Number - ZU040MZ3*RBC
Category - SIMPLEX™ Series Thin Section Ball Bearings

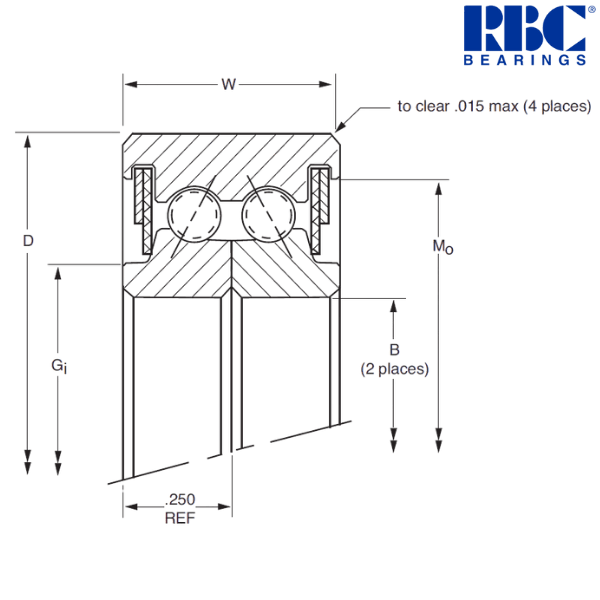

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 4 inch
Outside Diameter (D) - 4.75 inch
Width (W) - 0.5 inch
Recess Diameter (Gi) - 4.155 inch
Groove Diameter (Mo) - 4.55 inch
Ball Diameter - 0.125 inch
Ball Quantity - 54 pcs
Approximate Weight - 0.55 lbs
Radial Static Load - 905 lbf
Radial Dynamic Load - 640 lbf
Thrust Static Load - 2710 lbf
Thrust Dynamic Load - 1850 lbf
Moment Static Load - 4130 lbf-in
Moment Dynamic Load - 1555 lbf-in

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 101.6 mm
Outside Diameter (D) - 120.65 mm
Width (W) - 12.7 mm
Recess Diameter (Gi) - 105.54 mm
Groove Diameter (Mo) - 115.57 mm
Approximate Weight - 0.249 kg
Radial Static Load - 4030 N
Radial Dynamic Load - 2850 N
Thrust Static Load - 12050 N
Thrust Dynamic Load - 8230 N
Moment Static Load - 470 Nm
Moment Dynamic Load - 180 Nm

Description of Suffixes and Prefixes :
U - Extra Extended Width
M - Double Angular Ball Contact
3 - ABEC 3F

Other salient point to be noted :
* Radial load rating is two times the value per row ideally if both rows share load equally.

♦ ♦ Images are for representation purposes only
