Description
Brand - FAG

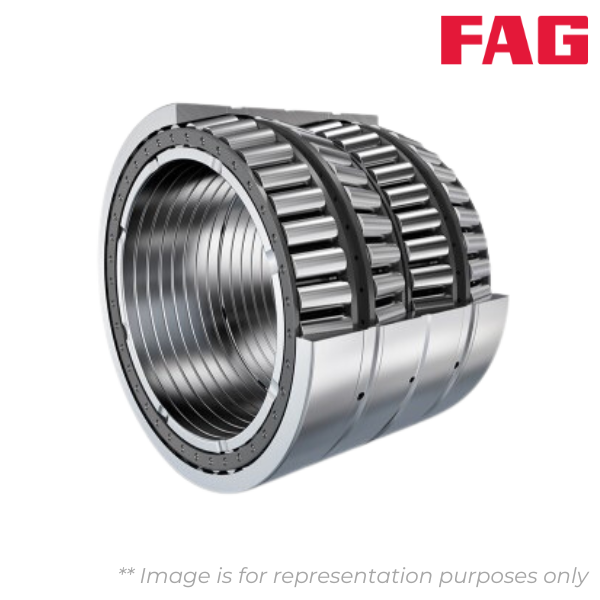

Item Number - Z-573688.TR4 FAG
Category - Four-Row Tapered Roller Bearing
Weight (Kg) - 115
Inner Diameter (d) mm - 266.7
Outer Diameter (D) mm - 393.7
Outer Width (T) mm - 269.878
Inner Width (B) mm - 269.878
Basic Dynamic Load Rating (Cr) kN - 3000
Basic Static Load Rating (C0r) kN - 5400
Dynamic Axial Load Factor (Y1) - 1.49
Dynamic Axial Load Factor (Y2) - 2.22
Static Axial Load Factor (Y0) - 1.46
Fatigue Limit Load (Cur) kN - 560
