Description
Brand - FAG

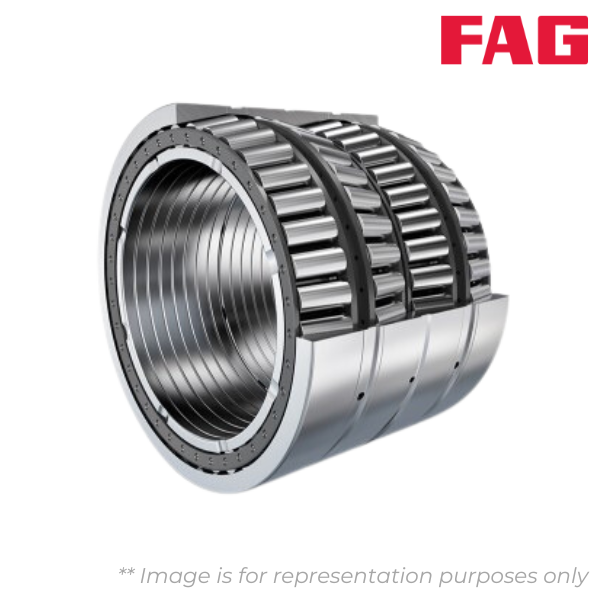

Item Number - Z-572452.TR4 FAG
Category - Four-Row Tapered Roller Bearing
Weight (Kg) - 369
Inner Diameter (d) mm - 342.9
Outer Diameter (D) mm - 571.5
Outer Width (T) mm - 342.9
Inner Width (B) mm - 342.9
Basic Dynanic Load Rating (Cr) kN - 6550
Basic Static Load Rating (C0r) kN - 10600
Dynamic Axial Load Factor (Y1) - 2.03
Dynamic Axial Load Factor (Y2) - 3.02
Static Axial Load Factor (Y0) - 1.98
