Description
Brand - FAG
Item Number - Z-572367.ZL-K-C5 FAG

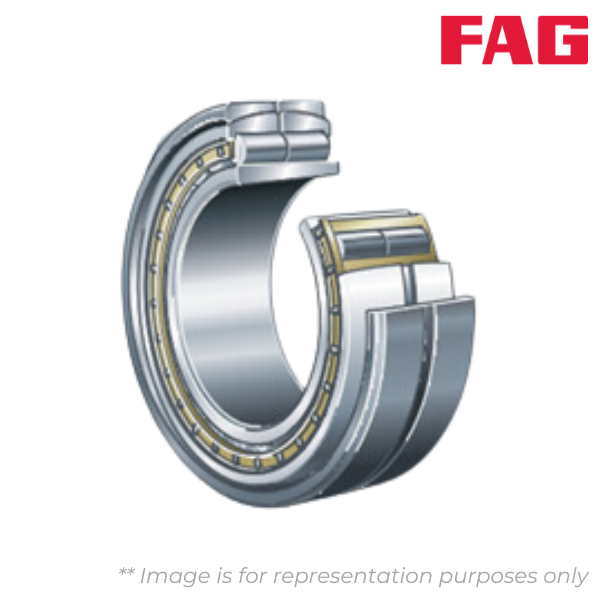

Category - Self-Aligning Cylindrical Roller Bearing
Weight (Kg) - 422
Inner Diameter (d) mm - 600
Outer Diameter (D) mm - 870
Inner Width (B) mm - 200
Minimum Chamfer Dimension (r) mm - 6
Axial Displacement (s) mm - 16
Raceway Diameter Inner Ring (F) mm - 665
Width of Lubrication (ns) mm - 23.5
Maximum Diameter of Shaft Shoulder (da) mm - 659
Maximum Diameter of Housing Shoulder (Da) mm - 847
Maximum Fillet Radius of Shaft (ra) mm - 5
Basic Dynamic Load Rating (Cr) kN - 4400
Basic Static Load Rating (C0r) kN - 12100
Fatigue Limit Load (Cur) kN - 1010
Limiting Speed (nG) rpm - 750
