Z-562602 INA


Country Of Origin: EU
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - INA
Item Number - Z-562602 INA
Category - Crossed Cylindrical Roller (Defined Preload)
Inner Diameter (d) mm - 1028.7
Outer Diameter (D) mm - 1327.15
Width (B) mm - 114.3
Weight (m) kg - 420
Width of Lubricating Groove (ns) mm - 23
Minimum Chamfer Dimension (r min) mm - 5

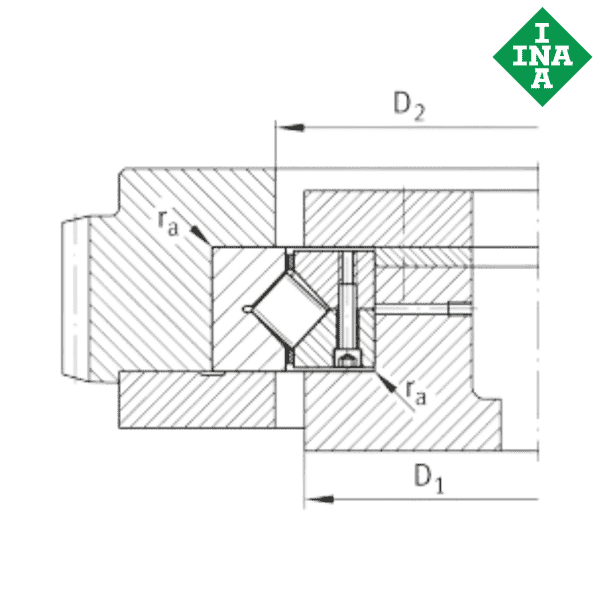

Minimum Mounting Dimension (D1) mm - 1147
Maximum Mounting Dimension (D2) mm - 1221
Maximum Mounting Dimension (ra) mm - 4
Basic Dynamic Load Rating (C) kN - 1800
Basic Static Load Rating (C0) kN - 10000
Limiting Speed for Grease Lubrication (nG) rpm - 85
Limiting Speed for Oil Lubrication (nG) rpm - 170
Grease Quantity for Initial Greasing (kg) - 3.8
Preload Force (FV) kN - 60

** Images are for representation purposes only
