Z-549823 INA


Country Of Origin: EU
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - INA
Item Number - Z-549823 INA
Category - Crossed Cylindrical Roller (Adjustable Preload)
Inner Diameter (d) mm - 4000
Outer Diameter (D) mm - 4460
Width (B) mm - 155
Weight (m) kg - 3161
Minimum Chamfer Dimension (r min) mm - 6

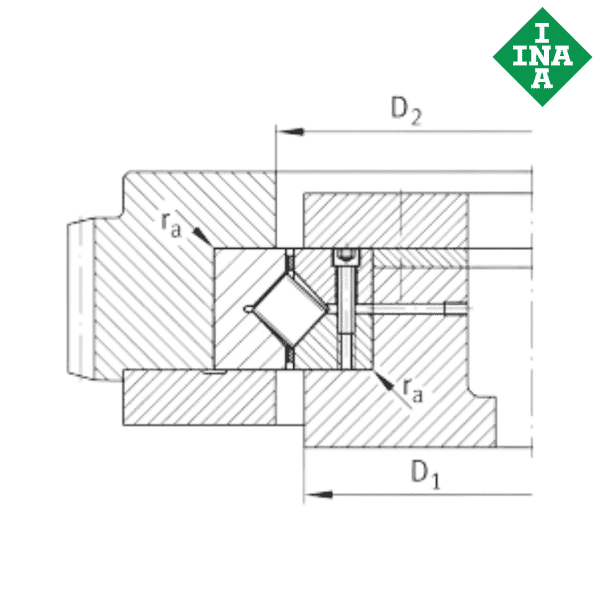

Minimum Mounting Dimension (D1) mm - 4202
Maximum Mounting Dimension (D2) mm - 4304
Maximum Mounting Dimension (ra) mm - 5
Basic Dynamic Load Rating (C) kN - 5300
Basic Static Load Rating (C0) kN - 49000
Limiting Speed for Grease Lubrication (nG grease) 1/min - 19
Limiting Speed for Oil Lubrication (nG oil) 1/min - 38
Grease Quantity for Initial Greasing (kg) - 25

** Images are for representation purposes only
