Z-549819 INA


Country Of Origin: EU
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - INA
Item Number - Z-549819 INA
Category - Crossed Cylindrical Roller (Adjustable Preload)
Inner Diameter (d) mm - 2100
Outer Diameter (D) mm - 2430
Width (B) mm - 120
Weight (m) kg - 940
Minimum Chamfer Dimension (r min) mm - 6

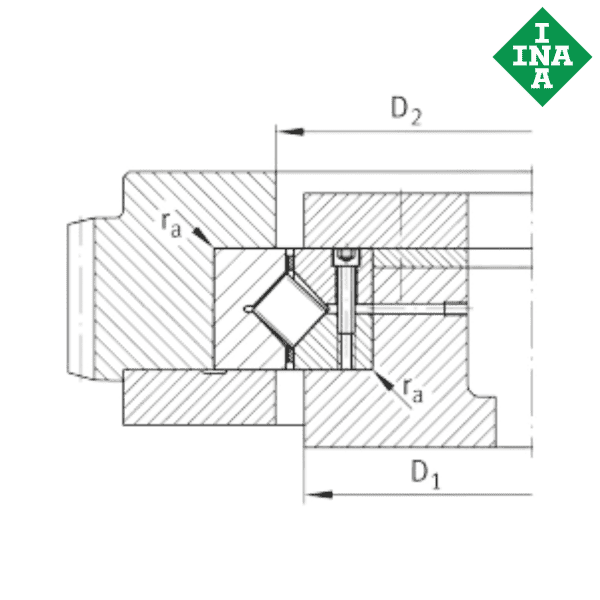

Minimum Mounting Dimension (D1) mm - 2241
Maximum Mounting Dimension (D2) mm - 2322
Maximum Mounting Dimension (ra) mm - 5
Basic Dynamic Load Rating (C) kN - 2850
Basic Static Load Rating (C0) kN - 20800
Limiting Speed for Grease Lubrication (nG grease) 1/min - 34
Limiting Speed for Oil Lubrication (nG oil) 1/min - 70
Grease Quantity for Initial Greasing (kg) - 8.5

** Images are for representation purposes only
