Z-549816 INA


Country Of Origin: EU
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - INA
Item Number - Z-549816 INA
Category - Crossed Cylindrical Roller (Adjustable Preload)
Inner Diameter (d) mm - 1580
Outer Diameter (D) mm - 1870
Width (B) mm - 110
Weight (m) kg - 573
Minimum Chamfer Dimension (r min) mm - 4
Minimum Mounting Dimension (D1) mm - 1697
Maximum Mounting Dimension (D2) mm - 1768
Maximum Mounting Dimension (ra) mm - 3
Basic Dynamic Load Rating (C) kN - 2080
Basic Static Load Rating (C0) kN - 14000
Limiting Speed for Grease Lubrication (nG grease) 1/min - 48
Limiting Speed for Oil Lubrication (nG oil) 1/min - 95
Grease Quantity for Initial Greasing (kg) - 5.5

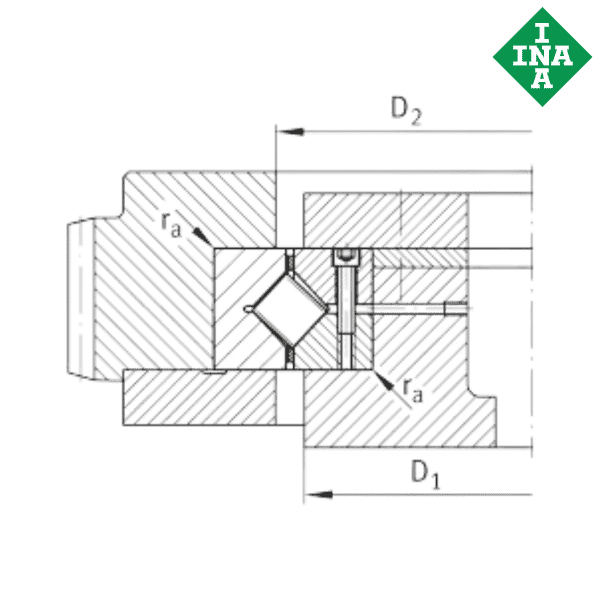

** Images are for representation purposes only
