Z-549813 INA

INA

Download Data Sheet

Country Of Origin: EU

Variant

Share this product

Brand - INA
Item Number - Z-549813 INA
Category - Crossed Cylindrical Roller (Adjustable Preload)
Inner Diameter (d) mm - 1340
Outer Diameter (D) mm - 1600
Width (B) mm - 100
Weight (m) kg - 400
Minimum Chamfer Dimension (r min) mm - 4

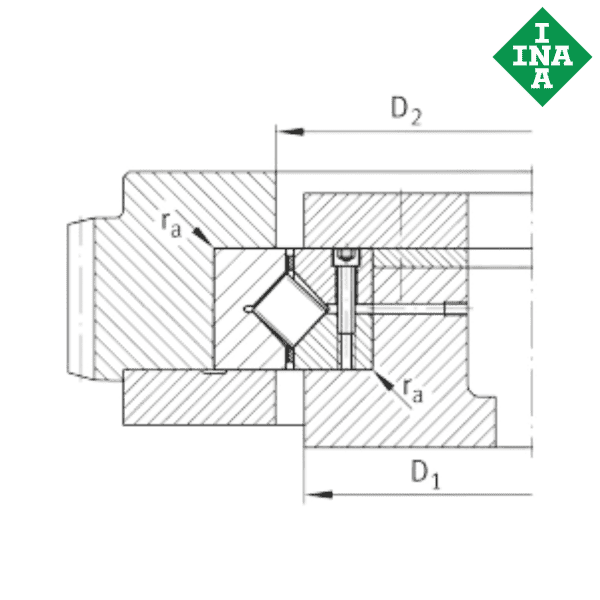

Minimum Mounting Dimension (D1) mm - 1449
Maximum Mounting Dimension (D2) mm - 1517
Maximum Mounting Dimension (ra) mm - 3
Basic Dynamic Load Rating (C) kN - 1760
Basic Static Load Rating (C0) kN - 11000
Limiting Speed for Grease Lubrication (nG grease) 1/min - 60
Limiting Speed for Oil Lubrication (nG oil) 1/min - 120
Grease Quantity for Initial Greasing (kg) - 3.9

** Images are for representation purposes only
