Z-549811 INA


Country Of Origin: EU
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - INA
Item Number - Z-549811 INA
Category - Crossed Cylindrical Roller (Adjustable Preload)
Inner Diameter (d) mm - 1100
Outer Diameter (D) mm - 1350
Width (B) mm - 95
Weight (m) kg - 305
Minimum Chamfer Dimension (r min) mm - 4

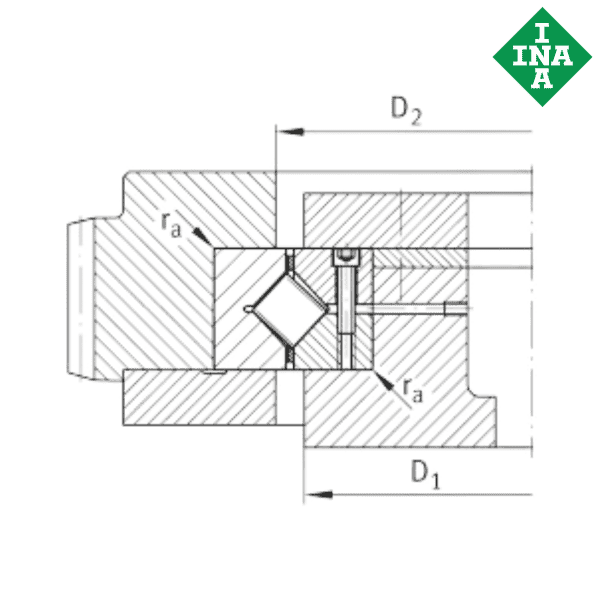

Minimum Mounting Dimension (D1) mm - 1207
Maximum Mounting Dimension (D2) mm - 1268
Maximum Mounting Dimension (ra) mm - 3
Basic Dynamic Load Rating (C) kN - 1370
Basic Static Load Rating (C0) kN - 8150
Limiting Speed for Grease Lubrication (nG grease) 1/min - 80
Limiting Speed for Oil Lubrication (nG oil) 1/min - 160
Grease Quantity for Initial Greasing (kg) - 2.7
