Z-549809 INA


Country Of Origin: EU
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - INA
Item Number - Z-549809 INA
Category - Crossed Cylindrical Roller (Adjustable Preload)
Inner Diameter (d) mm - 901.7
Outer Diameter (D) mm - 1117.6
Width (B) mm - 82.55
Weight (m) kg - 189
Minimum Chamfer Dimension (r min) mm - 4

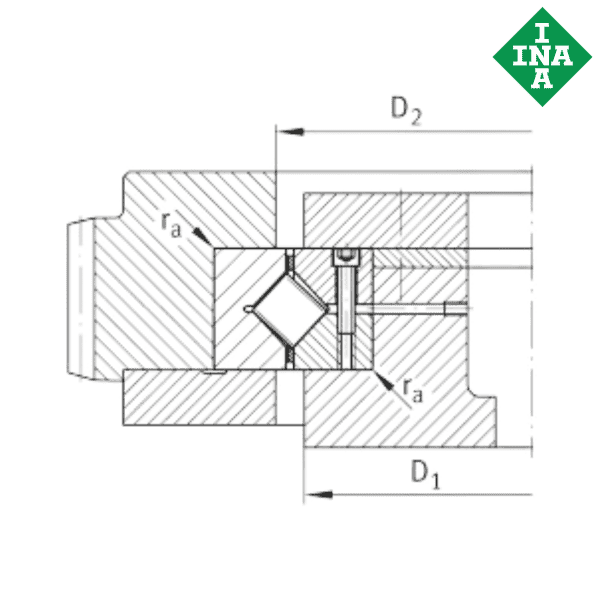

Minimum Mounting Dimension (D1) mm - 987
Maximum Mounting Dimension (D2) mm - 1041
Maximum Mounting Dimension (ra) mm - 3
Basic Dynamic Load Rating (C) kN - 1060
Basic Static Load Rating (C0) kN - 6000
Limiting Speed for Grease Lubrication (nG grease) 1/min - 110
Limiting Speed for Oil Lubrication (nG oil) 1/min - 220
Grease Quantity for Initial Greasing (kg) - 1.7

** Images are for representation purposes only
