Z-549808 INA


Country Of Origin: EU
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - INA
Item Number - Z-549808 INA
Category - Crossed Cylindrical Roller (Adjustable Preload)
Inner Diameter (d) mm - 740
Outer Diameter (D) mm - 940
Width (B) mm - 85
Weight (m) kg - 150
Minimum Chamfer Dimension (r min) mm - 5

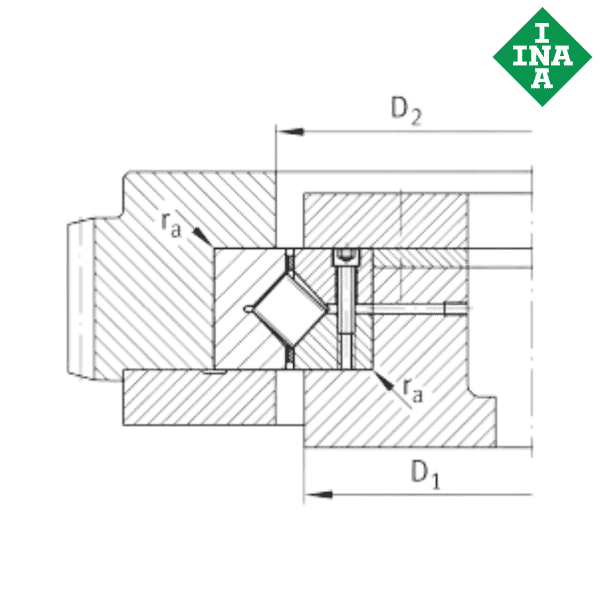

Minimum Mounting Dimension (D1) mm - 817
Maximum Mounting Dimension (D2) mm - 871
Maximum Mounting Dimension (ra) mm - 4
Basic Dynamic Load Rating (C) kN - 950
Basic Static Load Rating (C0) kN - 4900
Limiting Speed for Grease Lubrication (nG grease) 1/min - 140
Limiting Speed for Oil Lubrication (nG oil) 1/min - 280
Grease Quantity for Initial Greasing (kg) - 1.5

** Images are for representation purposes only
