Z-549803 INA


Country Of Origin: EU
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - INA
Item Number - Z-549803 INA
Category - Crossed Cylindrical Roller (Adjustable Preload)
Inner Diameter (d) mm - 380
Outer Diameter (D) mm - 520
Width (B) mm - 65
Weight (m) kg - 43
Minimum Chamfer Dimension (r min) mm - 4

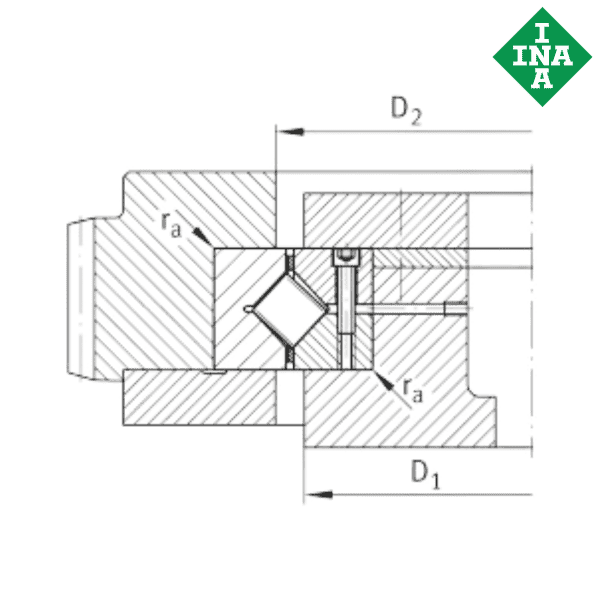

Minimum Mounting Dimension (D1) mm - 437
Maximum Mounting Dimension (D2) mm - 477
Maximum Mounting Dimension (ra) mm - 3
Basic Dynamic Load Rating (C) kN - 455
Basic Static Load Rating (C0) kN - 1860
Limiting Speed for Grease Lubrication (nG grease) 1/min - 260
Limiting Speed for Oil Lubrication (nG oil) 1/min - 530
Grease Quantity for Initial Greasing (kg) - 0.46

** Images are for representation purposes only
