Z-549802 INA


Country Of Origin: EU
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - INA
Item Number - Z-549802 INA
Category - Crossed Cylindrical Roller (Adjustable Preload)
Inner Diameter (d) mm - 330.2
Outer Diameter (D) mm - 457.2
Width (B) mm - 63.5
Weight (m) kg - 33
Minimum Chamfer Dimension (r min) mm - 4

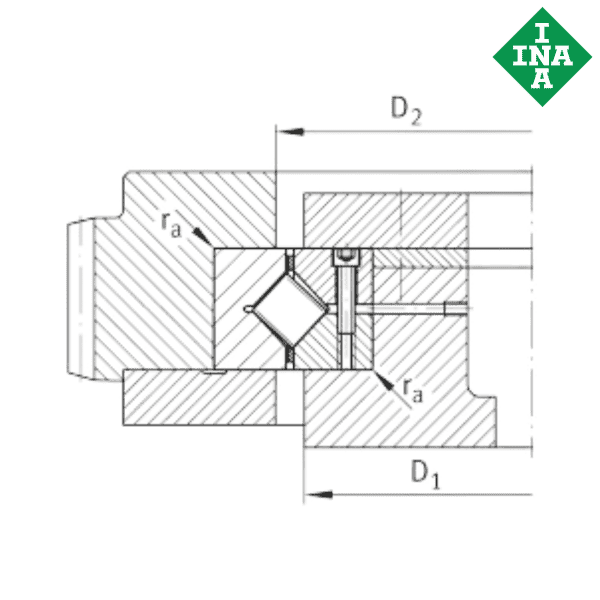

Minimum Mounting Dimension (D1) mm - 383
Maximum Mounting Dimension (D2) mm - 417
Maximum Mounting Dimension (ra) mm - 3
Basic Dynamic Load Rating (C) kN - 320
Basic Static Load Rating (C0) kN - 1320
Limiting Speed for Grease Lubrication (nG grease) 1/min - 280
Limiting Speed for Oil Lubrication (nG oil) 1/min - 560
Grease Quantity for Initial Greasing (kg) - 0.3

** Images are for representation purposes only
