Description
Brand - FAG

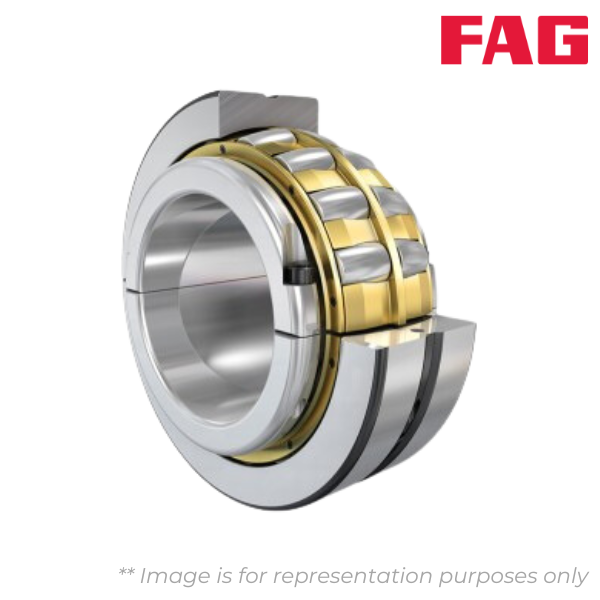

Item Number - Z-548413.PRL FAG
Category - Split Spherical Roller Bearing
Weight (Kg) - 420
Inner Diameter (d) mm - 560
Outer Diameter (D) mm - 820
Inner Width (B) mm - 300
Width, Outer Ring (C) mm - 195
Minimum Chamfer Dimension (r) mm - 6
Basic Dynamic Load Rating (Cr) kN - 4650
Basic Static Load Rating (C0r) kN - 9650
Dynamic Axial Load Factor (Y1) - 2.95
Dynamic Axial Load Factor (Y2) - 4.4
Static Axial Load Factor (Y0) - 2.89
Fatigue Limit Load (Cur) kN - 700
