Z-541830.249/850-B-K30 FAG


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - FAG
Item Number - Z-541830.249/850-B-K30 FAG
Sleeve - Z-524974.KH
Category - Spherical Roller Bearing
Weight (Kg) - 695
Weight of the Sleeve (Kg) - 155
Inner Diameter (d) mm - 850
Outer Diameter (D) mm - 1120
Inner Width (B) mm - 272
Minimum Chamfer Dimension (r) mm - 6
Maximum Diameter of Shaft Shoulder (da) mm - 910
Maximum Diameter of Housing Shoulder (Da) mm - 1070
Minimum Cavity Diameter of the Sleeve (db) mm - 870
Basic Static Load Rating (C0r) kN - 22400
Static Axial Load Factor (Y0) - 3.2

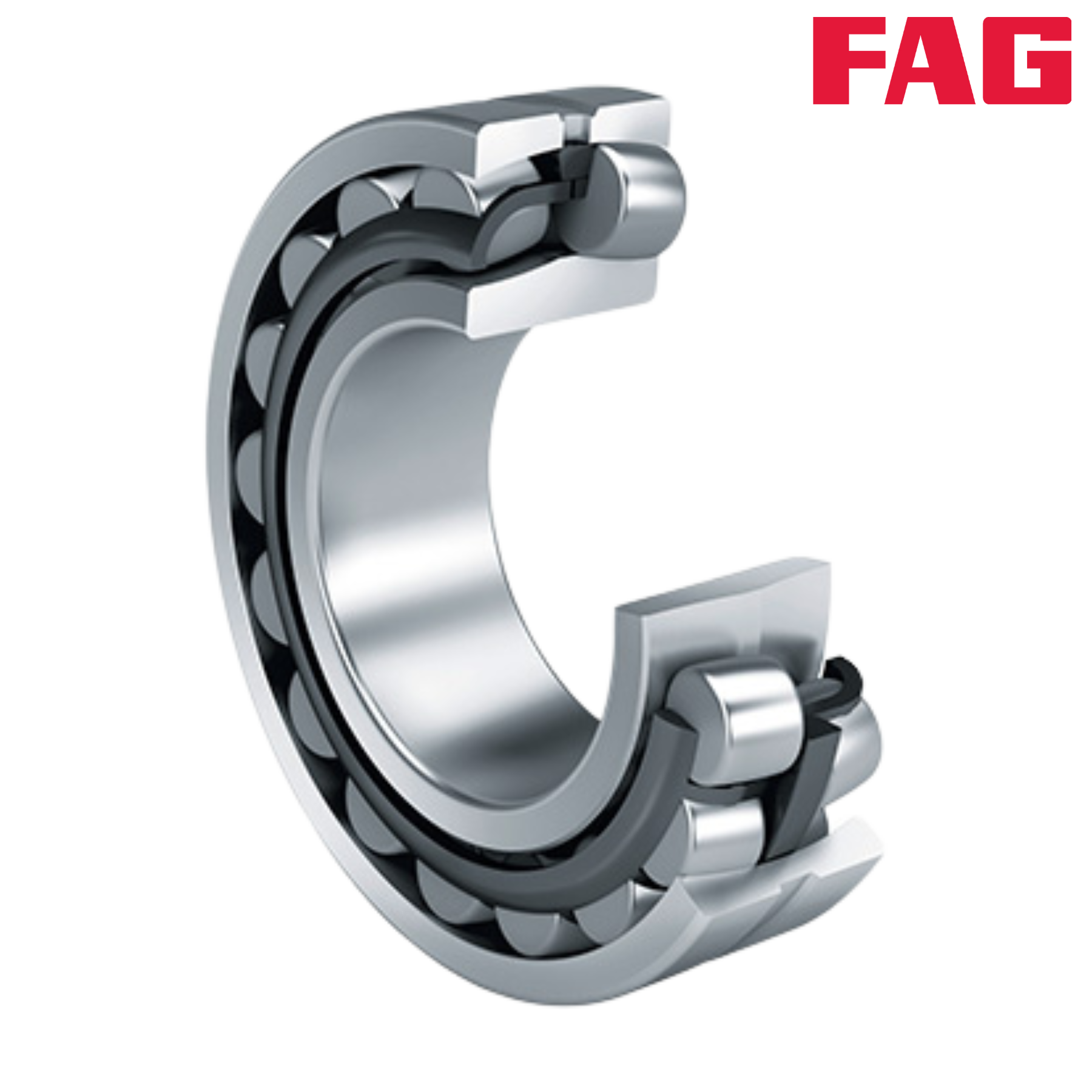

** Image is for representation purposes only
