Description
Brand - FAG
Item Number - Z-541539.24164-B FAG
Category - Spherical Roller Bearing
Weight (Kg) - 199
Inner Diameter (d) mm - 320
Outer Diameter (D) mm - 540
Inner Width (B) mm - 218
Minimum Chamfer Dimension (r) mm - 5
Shoulder Diameter Outer Ring (D1) mm - 456.1
Raceway Diameter of the Inner Ring (d2) mm - 377.7
Diameter Lubrication Hole (ds) mm - 9.5
Width of Lubricating Groove (ns) mm - 17.7
Maximum Diameter of Shaft Shoulder (da) mm - 340
Maximum Diameter of Housing Shoulder (Da) mm - 520
Maximum Fillet Radius of Shaft (ra) mm - 4
Basic Dynamic Load Rating (Cr) kN - 3750
Basic Static Load Rating (C0r) kN - 7200
Dynamic Axial Load Factor (Y1) - 1.65
Dynamic Axial Load Factor (Y2) - 2.46
Static Axial Load Factor (Y0) - 1.61
Fatigue Limit Load (Cur) kN - 530

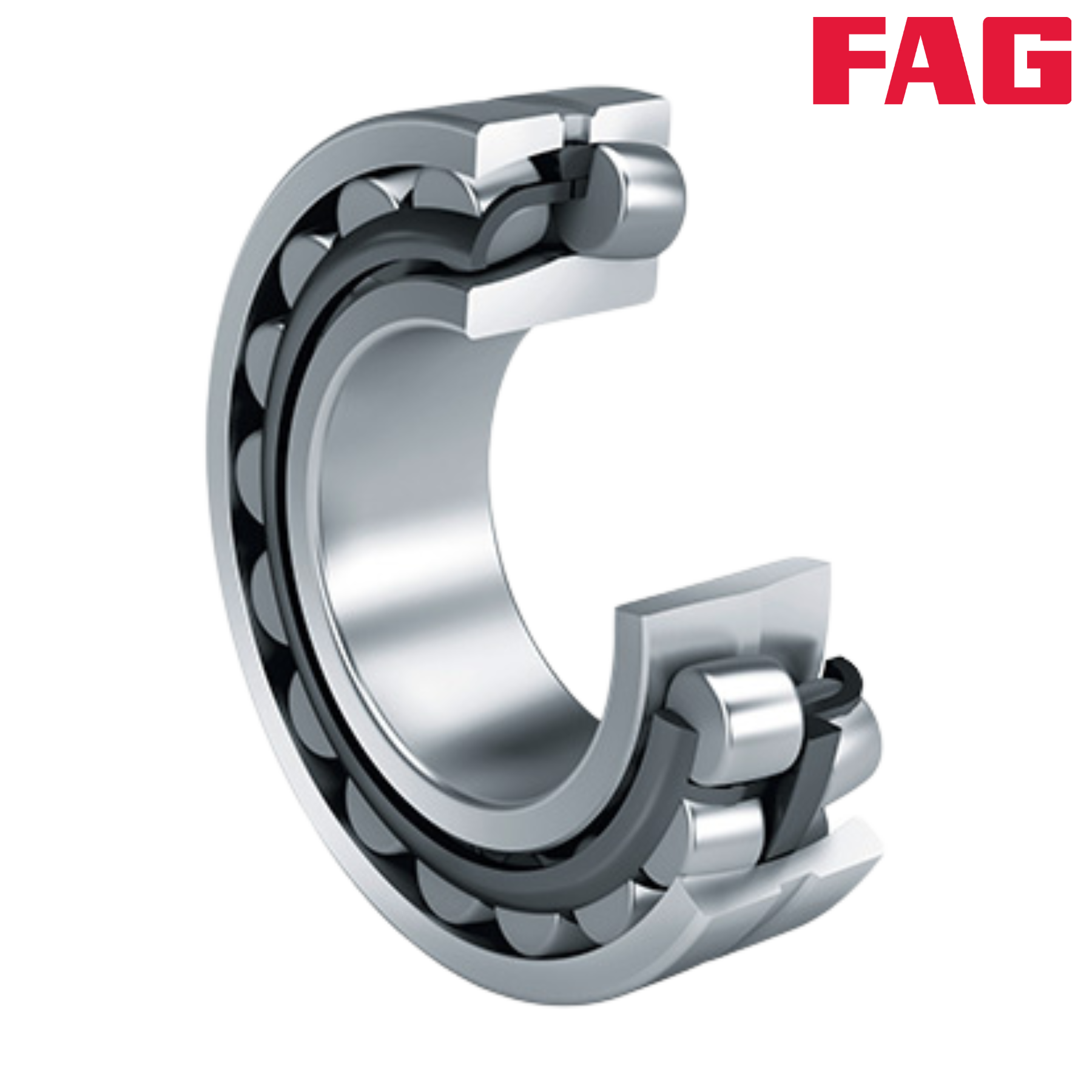

** Image is for representation purposes only
