Description
Brand - FAG

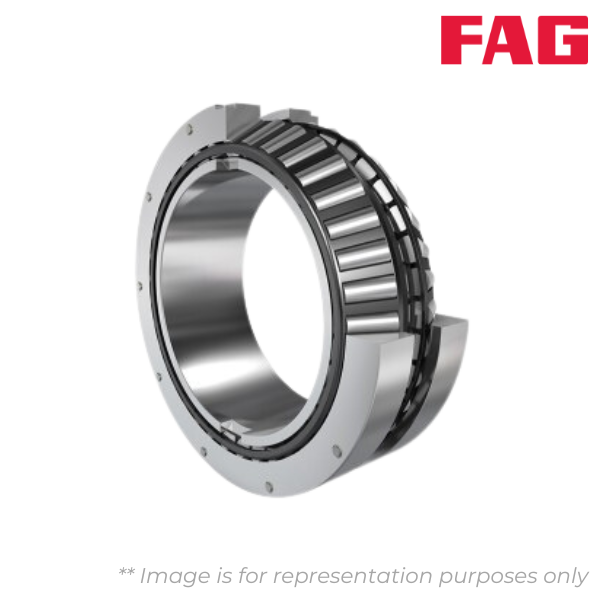

Item Number - Z-539031.TR2 FAG
Category - Double Row Tapered Roller Bearing
Weight (Kg) - 162
Inner Diameter (d) mm - 500
Outer Diameter (D) mm - 670
Outer Width (T) mm - 180
Width, Outer Ring (C) mm - 130
Basic Dynamic Load Rating (Cr) kN - 2600
Basic Static Load Rating (C0r) kN - 6600
Dynamic Axial Load Factor (Y1) - 1.63
Dynamic Axial Load Factor (Y2) - 2.43
Static Axial Load Factor (Y0) - 1.6
Fatigue Limit Load (Cur) kN - 580
