Description

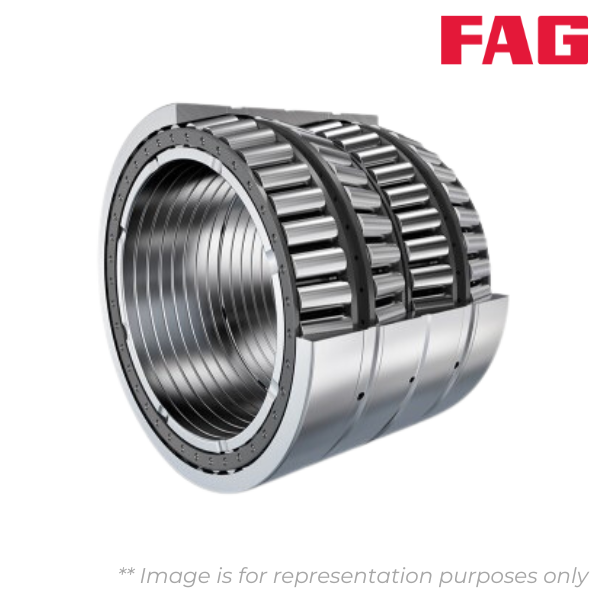

Brand - FAG
Item Number - Z-537905.TR4 FAG
Category - Four-Row Tapered Roller Bearing
Weight (Kg) - 2700
Inner Diameter (d) mm - 670
Outer Diameter (D) mm - 1090
Outer Width (T) mm - 710
Inner Width (B) mm - 710
Basic Dynanic Load Rating (Cr) kN - 26000
Basic Static Load Rating (C0r) kN - 50000
Dynamic Axial Load Factor (Y1) - 2.32
Dynamic Axial Load Factor (Y2) - 3.45
Static Axial Load Factor (Y0) - 2.3
Fatigue Limit Load (Cur) kN - 3800
