Z-530311.01.AR FAG


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - FAG
Item number - Z-530311.01.AR FAG

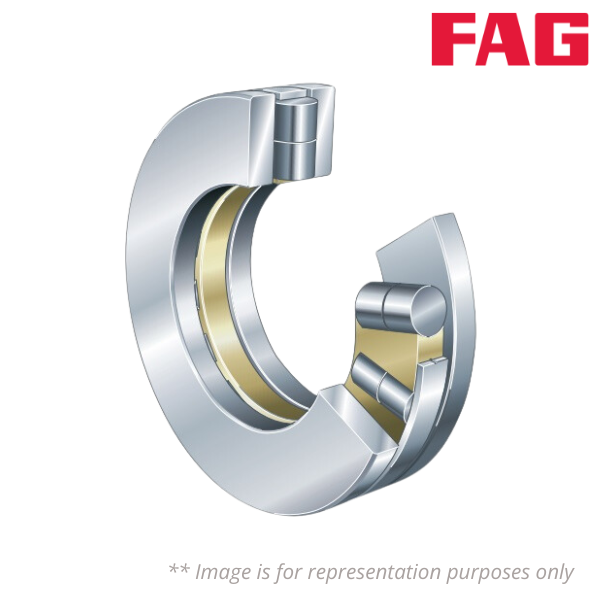

Category - Single Direction Axial Cylindrical Roller Bearing, Double Row
Weight (Kg) - 343

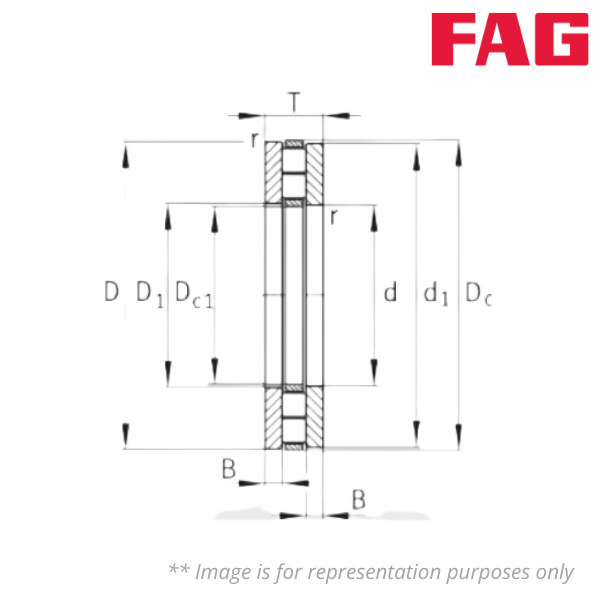

Inner Diameter (d) mm - 711.327
Outer Diameter (D) mm - 964.514
Height (T) mm - 127.127
Inner Width (B) mm - 39.56
Minimum Chamfer Dimension (r) mm - 7.5
Bore Diameter Housing Washer (D1) mm - 711.327
Rip Diameter Shaft Washer (d1) mm - 964.514
Basic Dynamic Load Rating, Axial (Ca) kN - 6000
Basic Static Load Rating, Axial (C0a) kN - 34000
Fatigue Load Limit (Cua) kN - 2110
Limiting Speed (nG) rpm - 380
