Description
Brand - FAG
Item Number - Z-528749.PRL-K30 FAG
Sleeve - Z-524974.KH
Category - Spherical Roller Bearing
Weight (Kg) - 621
Weight of the Sleeve (Kg) - 140
Inner Diameter (d) mm - 800
Outer Diameter (D) mm - 1060
Inner Width (B) mm - 258
Minimum Chamfer Dimension (r) mm - 7.5
Maximum Diameter of Shaft Shoulder (da) mm - 860
Maximum Diameter of Housing Shoulder (Da) mm - 1010
Minimum Cavity Diameter of the Sleeve (db) mm - 820
Basic Static Load Rating (C0r) kN - 18600
Static Axial Load Factor (Y0) - 3.23

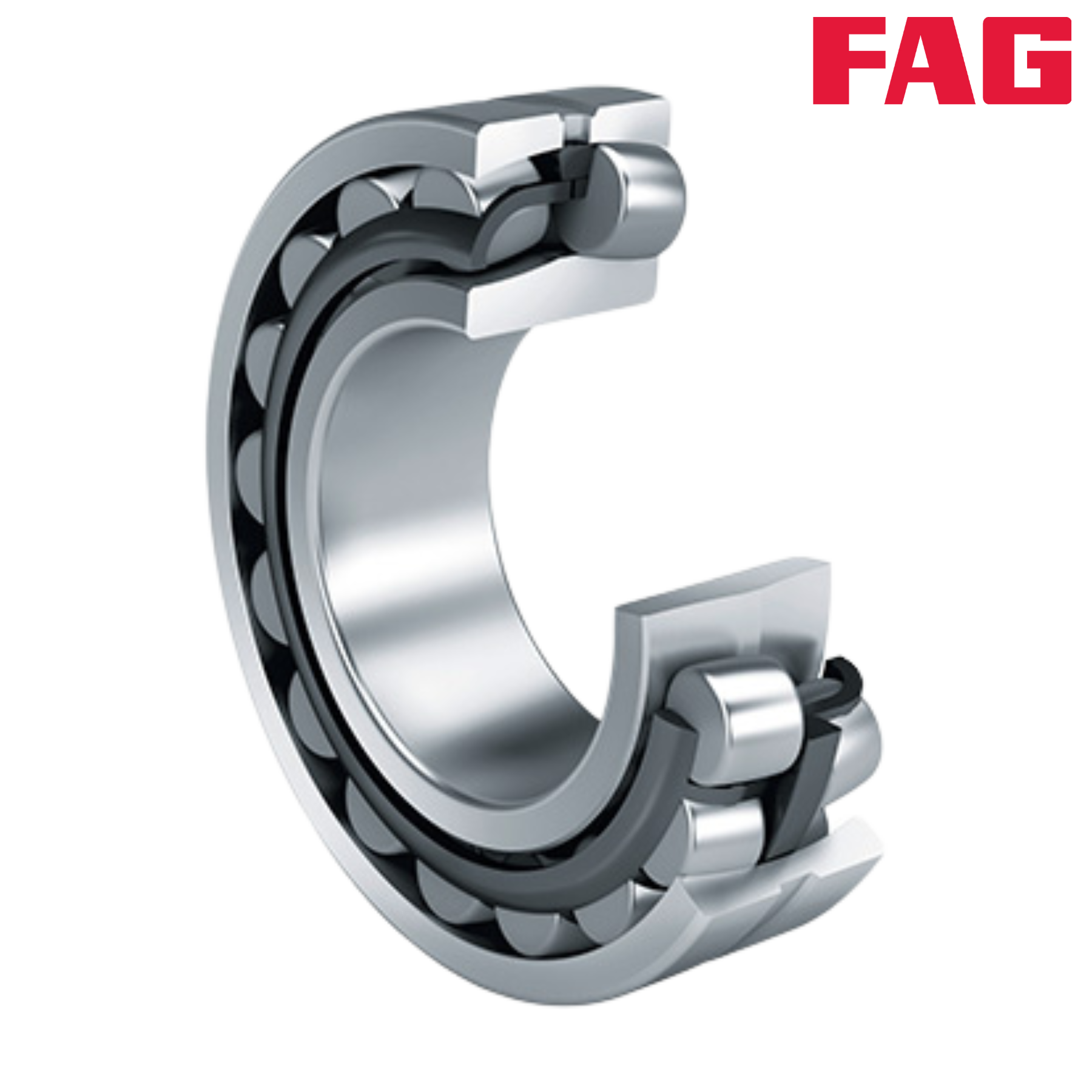

** Image is for representation purposes only
