Description
Brand - FAG

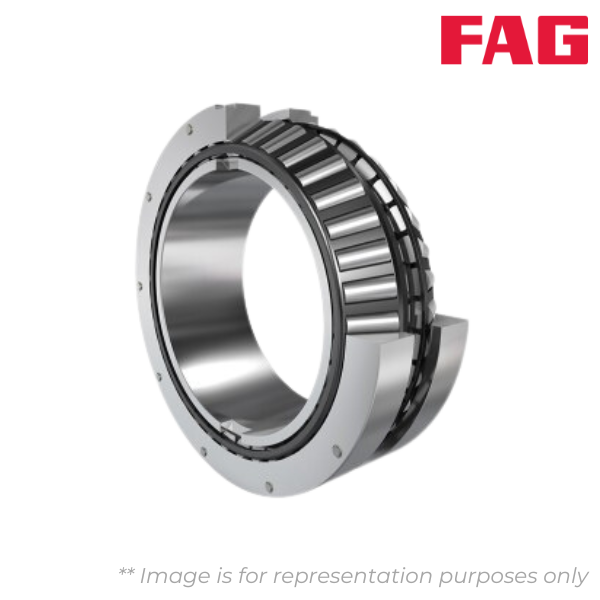

Item Number - Z-527127.TR2 FAG
Category - Double Row Tapered Roller Bearing
Weight (Kg) - 95.5
Inner Diameter (d) mm - 431.8
Outer Diameter (D) mm - 571.5
Outer Width (T) mm - 155.575
Width, Outer Ring (C) mm - 111.125
Basic Dynamic Load Rating (Cr) kN - 2000
Basic Static Load Rating (C0r) kN - 4800
Dynamic Axial Load Factor (Y1) - 1.24
Dynamic Axial Load Factor (Y2) - 1.84
Static Axial Load Factor (Y0) - 1.21
Fatigue Limit Load (Cur) kN - 445
