Description
Brand - FAG

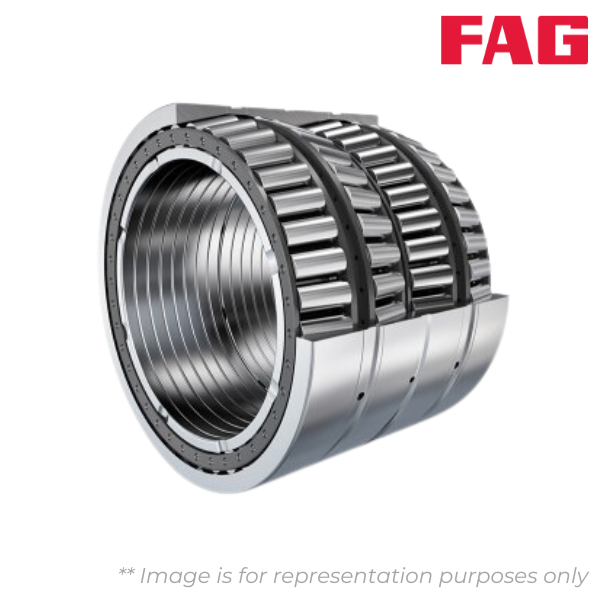

Item Number - Z-525433.TR4 FAG
Category - Four-Row Tapered Roller Bearing
Weight (Kg) - 605
Inner Diameter (d) mm - 935
Outer Diameter (D) mm - 1150
Outer Width (T) mm - 710
Inner Width (B) mm - 710
Basic Dynanic Load Rating (Cr) kN - 22800
Basic Static Load Rating (C0r) kN - 69500
Dynamic Axial Load Factor (Y1) - 2.55
Dynamic Axial Load Factor (Y2) - 3.8
Static Axial Load Factor (Y0) - 2.5
