Description
Brand - FAG

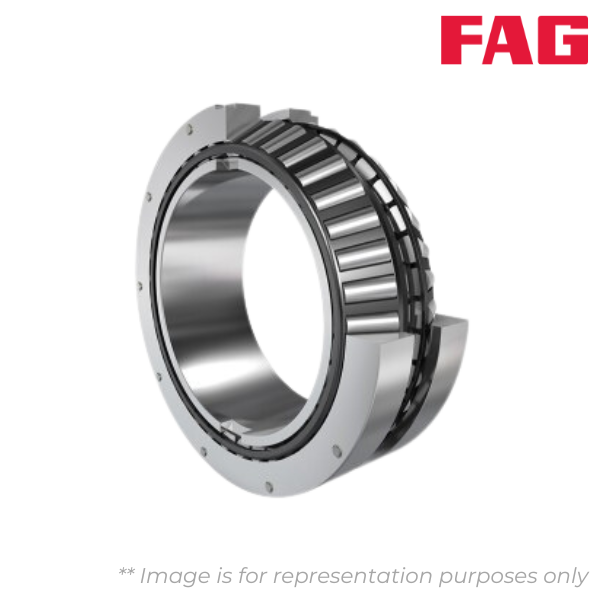

Item Number - Z-524528.TR2 FAG
Category - Double Row Tapered Roller Bearing
Weight (Kg) - 248
Inner Diameter (d) mm - 602.945
Outer Diameter (D) mm - 787.4
Outer Width (T) mm - 206.375
Width, Outer Ring (C) mm - 158.75
Basic Dynamic Load Rating (Cr) kN - 3100
Basic Static Load Rating (C0r) kN - 9000
Dynamic Axial Load Factor (Y1) - 1.35
Dynamic Axial Load Factor (Y2) - 2.01
Static Axial Load Factor (Y0) - 1.32
Fatigue Limit Load (Cur) kN - 760
