Description
Brand - FAG

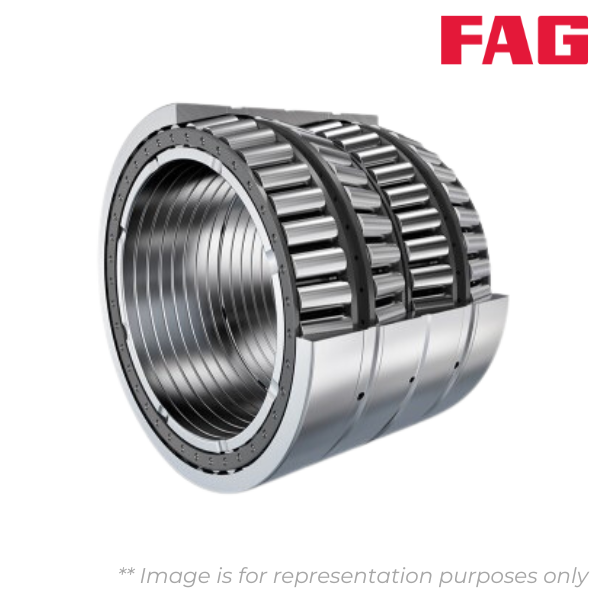

Item Number - Z-522129.TR4 FAG
Category - Four-Row Tapered Roller Bearing
Weight (Kg) - 5290
Inner Diameter (d) mm - 850
Outer Diameter (D) mm - 1360
Outer Width (T) mm - 910
Inner Width (B) mm - 910
Basic Dynanic Load Rating (Cr) kN - 39000
Basic Static Load Rating (C0r) kN - 78000
Dynamic Axial Load Factor (Y1) - 2.12
Dynamic Axial Load Factor (Y2) - 3.15
Static Axial Load Factor (Y0) - 2.1
