Description
Brand - FAG
Item Number - Z-521179.TR4 FAG

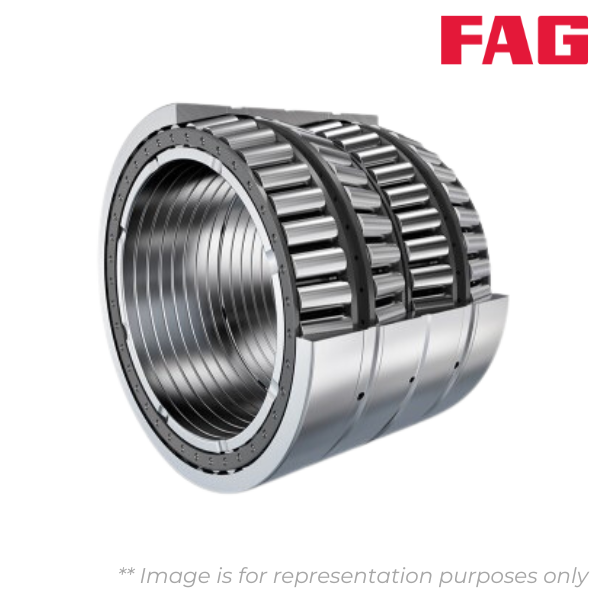

Category - Four-Row Tapered Roller Bearing
Weight (Kg) - 530
Inner Diameter (d) mm - 558.8
Outer Diameter (D) mm - 736.6
Outer Width (T) mm - 457.2
Inner Width (B) mm - 455.612
Basic Dynanic Load Rating (Cr) kN - 10000
Basic Static Load Rating (C0r) kN - 24500
Dynamic Axial Load Factor (Y1) - 2.14
Dynamic Axial Load Factor (Y2) - 3.18
Static Axial Load Factor (Y0) - 2.09
