Description
Brand - FAG

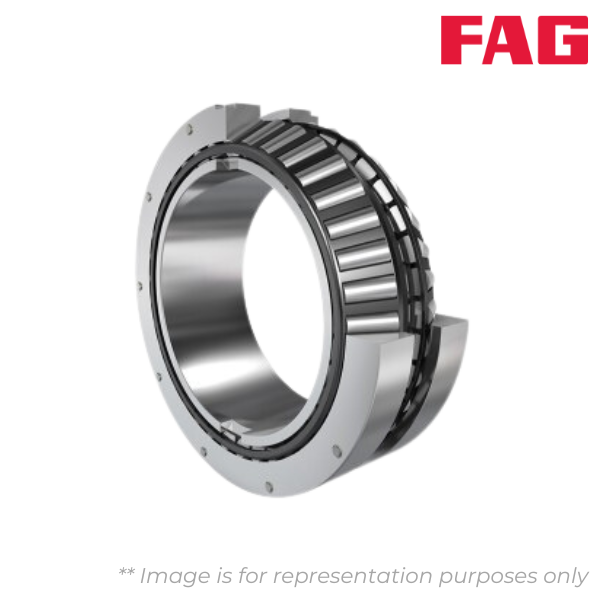

Item Number - Z-515129.TR2 FAG
Category - Double Row Tapered Roller Bearing
Weight (Kg) - 259
Inner Diameter (d) mm - 254
Outer Diameter (D) mm - 533.4
Outer Width (T) mm - 276.225
Width, Outer Ring (C) mm - 165.1
Basic Dynamic Load Rating (Cr) kN - 3450
Basic Static Load Rating (C0r) kN - 5700
Dynamic Axial Load Factor (Y1) - 0.78
Dynamic Axial Load Factor (Y2) - 1.16
Static Axial Load Factor (Y0) - 0.76
Fatigue Limit Load (Cur) kN - 530
