Description
Brand - FAG

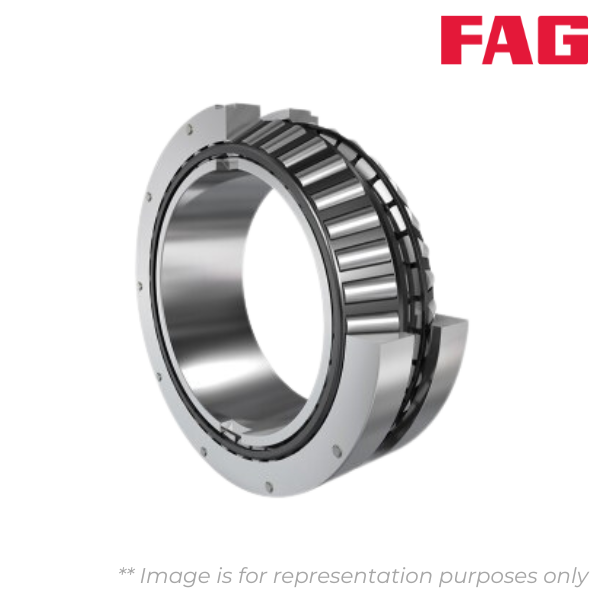

Item Number - Z-512878.TR2 FAG
Category - Double Row Tapered Roller Bearing
Weight (Kg) - 258
Inner Diameter (d) mm - 723.9
Outer Diameter (D) mm - 914.4
Outer Width (T) mm - 187.325
Width, Outer Ring (C) mm - 139.7
Basic Dynamic Load Rating (Cr) kN - 3400
Basic Static Load Rating (C0r) kN - 9500
Dynamic Axial Load Factor (Y1) - 1.77
Dynamic Axial Load Factor (Y2) - 2.63
Static Axial Load Factor (Y0) - 1.73
Fatigue Limit Load (Cur) kN - 750
