Description
Brand - FAG

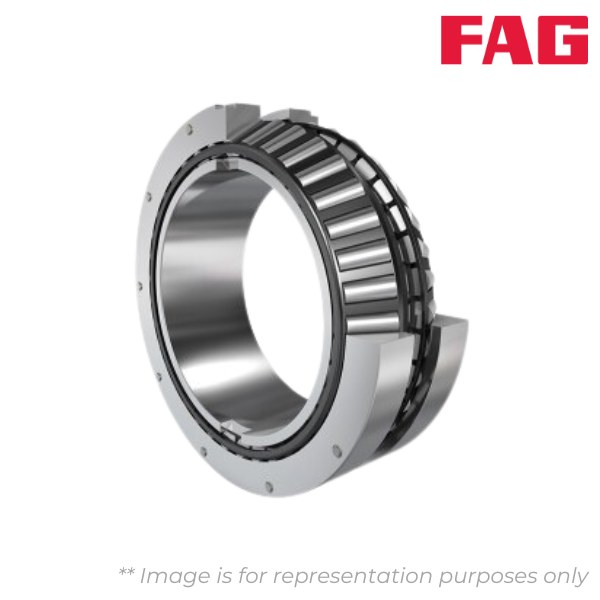

Item Number - Z-512516.TR2 FAG
Category - Double Row Tapered Roller Bearing
Weight (Kg) - 275
Inner Diameter (d) mm - 685.8
Outer Diameter (D) mm - 876.3
Outer Width (T) mm - 200.025
Width, Outer Ring (C) mm - 152.4
Basic Dynamic Load Rating (Cr) kN - 3350
Basic Static Load Rating (C0r) kN - 9900
Dynamic Axial Load Factor (Y1) - 1.66
Dynamic Axial Load Factor (Y2) - 2.47
Static Axial Load Factor (Y0) - 1.62
Fatigue Limit Load (Cur) kN - 810
