Description
Brand - FAG

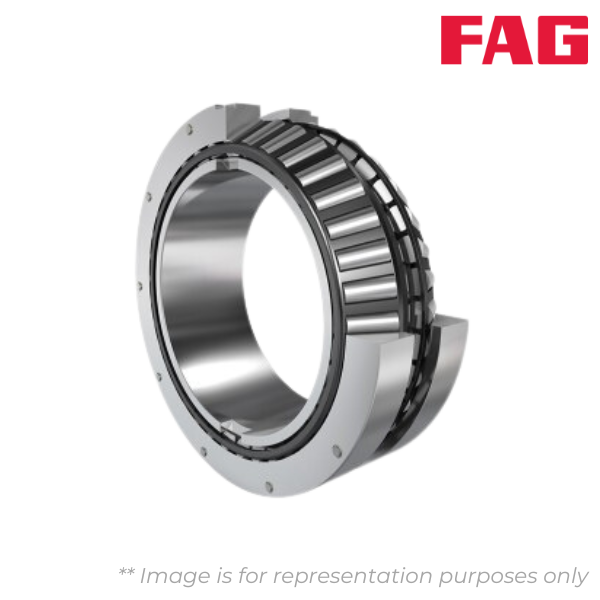

Item Number - Z-511996.TR2 FAG
Category - Double Row Tapered Roller Bearing
Weight (Kg) - 365
Inner Diameter (d) mm - 420
Outer Diameter (D) mm - 700
Outer Width (T) mm - 275
Width, Outer Ring (C) mm - 200
Basic Dynamic Load Rating (Cr) kN - 4700
Basic Static Load Rating (C0r) kN - 9200
Dynamic Axial Load Factor (Y1) - 1.6
Dynamic Axial Load Factor (Y2) - 2.38
Static Axial Load Factor (Y0) - 1.56
Fatigue Limit Load (Cur) kN - 800
