Description
Brand - FAG

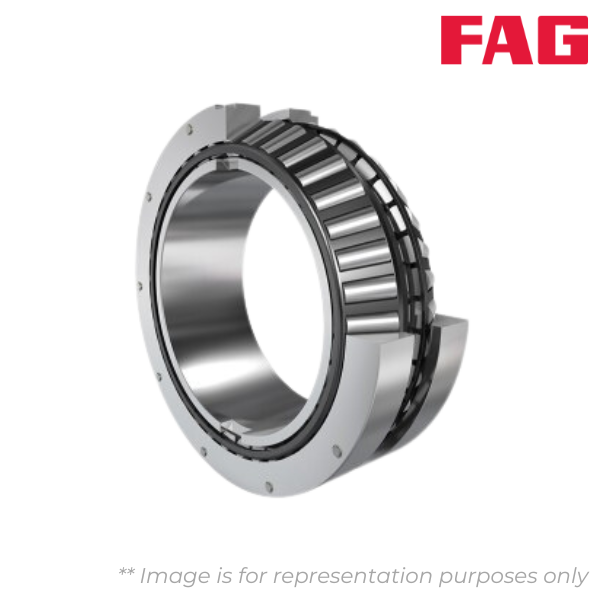

Item Number - Z-511992.TR2 FAG
Category - Double Row Tapered Roller Bearing
Weight (Kg) - 228
Inner Diameter (d) mm - 340
Outer Diameter (D) mm - 580
Outer Width (T) mm - 242
Width, Outer Ring (C) mm - 170
Basic Dynamic Load Rating (Cr) kN - 3350
Basic Static Load Rating (C0r) kN - 6300
Dynamic Axial Load Factor (Y1) - 1.44
Dynamic Axial Load Factor (Y2) - 2.15
Static Axial Load Factor (Y0) - 1.41
Fatigue Limit Load (Cur) kN - 590
