Description
Brand - FAG
Item Number - Z-508308.KL FAG

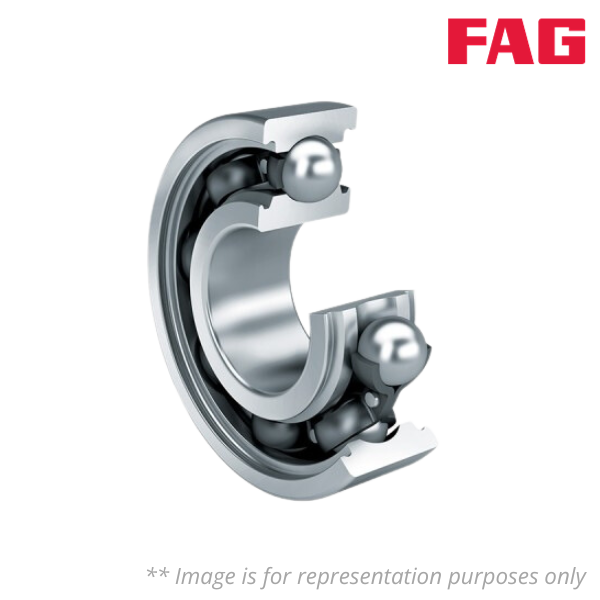

Category - Deep Groove Ball Bearing Single Row

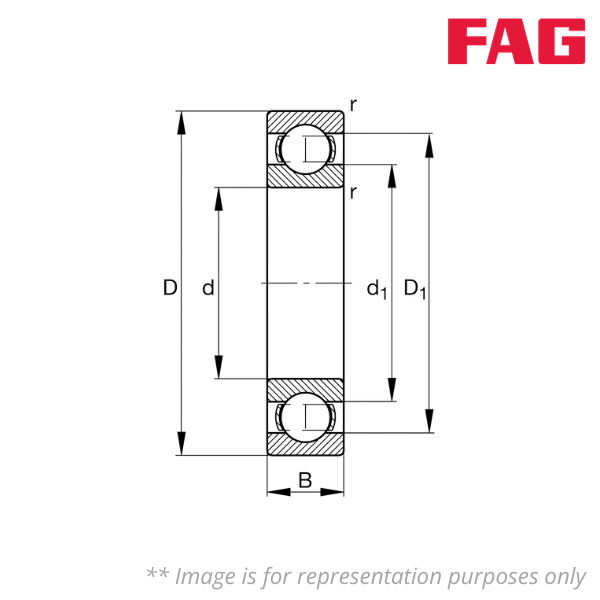

Inner Diameter(d) mm - 640
Outer Diameter(D) mm - 940
Weight (Kg) - 327
Inner Width(B) mm - 128
Minimum Chamfer Dimension(r) mm - 7.5
Shoulder diameter outer ring(D1) mm - 844
Shoulder diameter inner ring(d1) mm - 740
Minimum diameter shaft shoulder(da) mm - 668
Maximum diameter of housing shoulder(Da) mm - 912
Maximum fillet radius(ra) mm - 6
Basic Dynamic load rating(Cr) kN - 815
Basic Static load rating(C0r) kN - 1760
Fatigue limit load current(Cur) kN - 36
Calculation factor(f0) - 16.2
Limiting speed (RPM) - 1300
