Description
Brand - FAG
Item Number - Z-507145.AR FAG

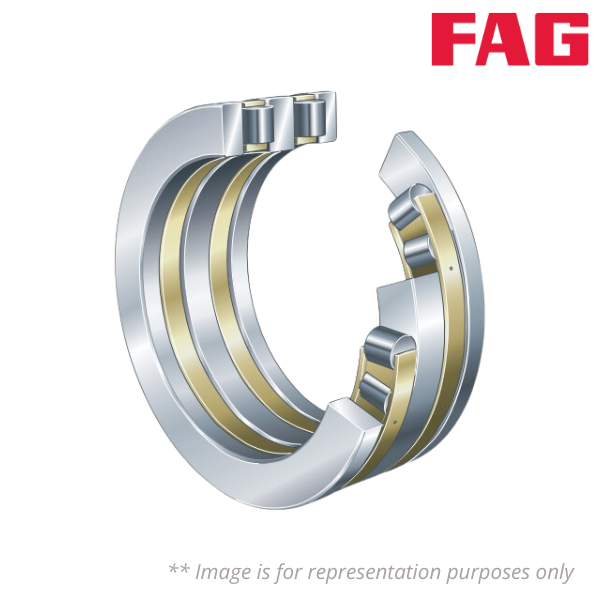

Category - Double Direction Axial Cylindrical Roller Bearing
Weight (Kg) - 1330

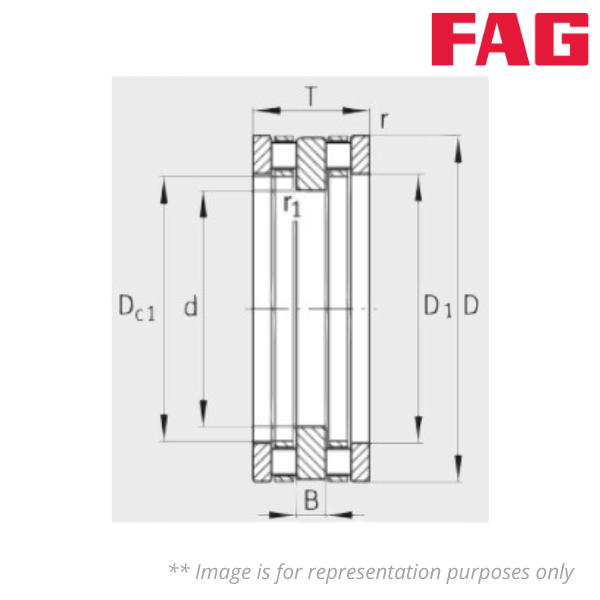

Inner Diameter (d) mm - 1000
Outer Diameter (D) mm - 1320
Height (T) mm - 380
Inner Width (B) mm - 96
Minimum Chamfer Dimension (r) mm - 9.5
Minimum Chamfer Dimension (r1) mm - 6
Bore Diameter Housing Washer (D1) mm - 1090
Rip Diameter Shaft Washer (d1) mm - 1316
Maximum Diameter of Housing Shoulder (Da) mm - 1113
Maximum Recess Radius (ra) mm - 8
Maximum Recess Radius (ra1) mm - 5
Basic Dynamic Load Rating (Ca) kN - 9000
Basic Static Load Rating (C0a) kN - 46500
Fatigue Limit Load (Cua) kN - 2600
Limiting Speed (nG) rpm - 260
