Description
Brand - FAG
Item Number - Z-507144.AR FAG

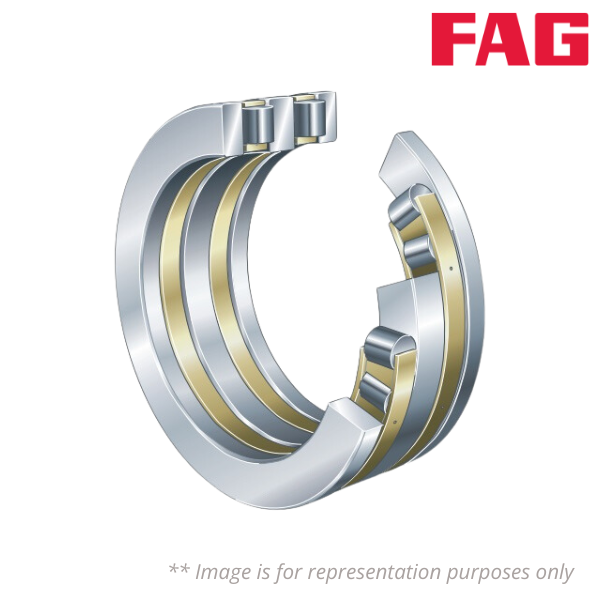

Category - Double Direction Axial Cylindrical Roller Bearing
Weight (Kg) - 1120

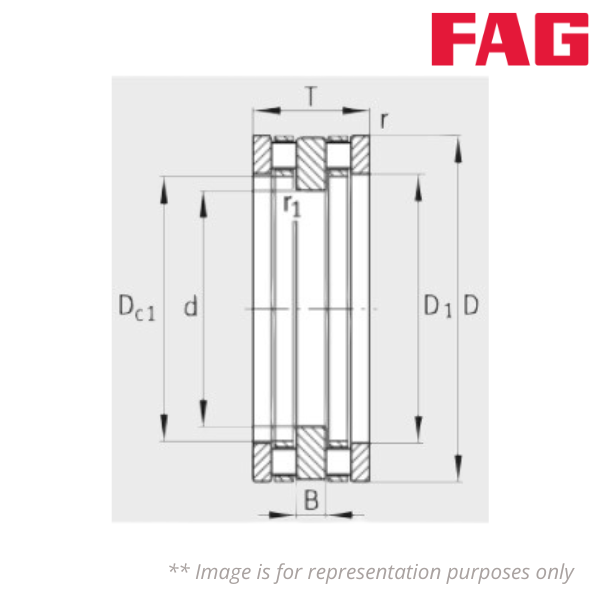

Inner Diameter (d) mm - 950
Outer Diameter (D) mm - 1250
Height (T) mm - 360
Inner Width (B) mm - 92
Minimum Chamfer Dimension (r) mm - 7.5
Minimum Chamfer Dimension (r1) mm - 5
Bore Diameter Housing Washer (D1) mm - 1035
Rip Diameter Shaft Washer (d1) mm - 1246
Maximum Diameter of Housing Shoulder (Da) mm - 1056
Maximum Recess Radius (ra) mm - 6
Maximum Recess Radius (ra1) mm - 4
Basic Dynamic Load Rating (Ca) kN - 8000
Basic Static Load Rating (C0a) kN - 41500
Fatigue Limit Load (Cua) kN - 2360
Limiting Speed (nG) rpm - 260
