Description
Brand - FAG
Item Number - Z-507141.AR FAG

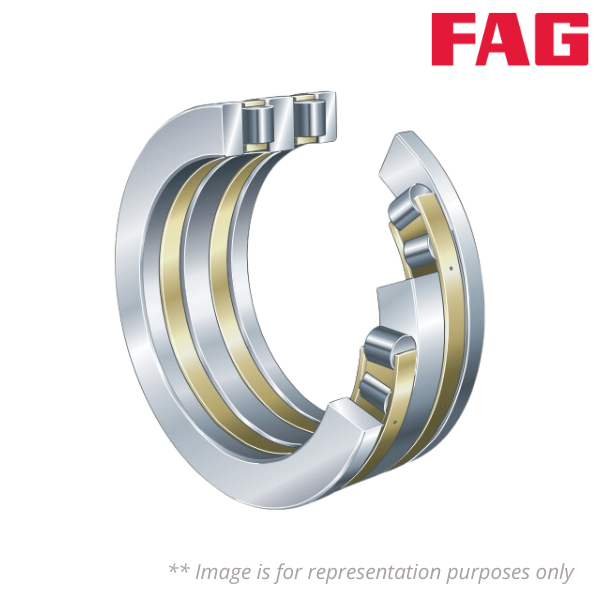

Category - Double Direction Axial Cylindrical Roller Bearing
Weight (Kg) - 708

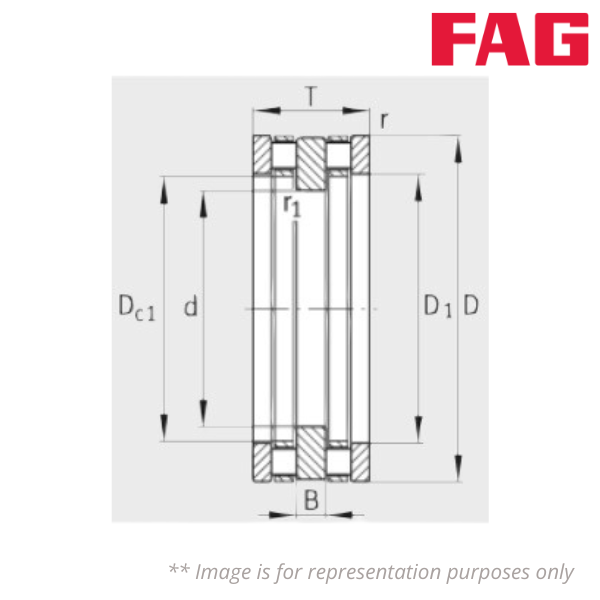

Inner Diameter (d) mm - 800
Outer Diameter (D) mm - 1060
Height (T) mm - 310
Inner Width (B) mm - 82
Minimum Chamfer Dimension (r) mm - 7.5
Minimum Chamfer Dimension (r1) mm - 5
Bore Diameter Housing Washer (D1) mm - 875
Rip Diameter Shaft Washer (d1) mm - 1054
Maximum Diameter of Housing Shoulder (Da) mm - 891
Maximum Recess Radius (ra) mm - 6
Maximum Recess Radius (ra1) mm - 4
Basic Dynamic Load Rating (Ca) kN - 5850
Basic Static Load Rating (C0a) kN - 29000
Fatigue Limit Load (Cua) kN - 1770
Limiting Speed (nG) rpm - 340
