Description
Brand - FAG
Item Number - Z-507124.AR FAG

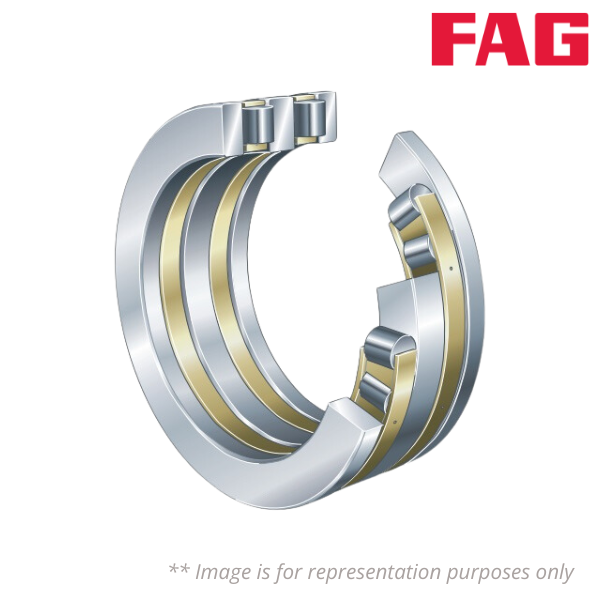

Category - Double Direction Axial Cylindrical Roller Bearing
Weight (Kg) - 64

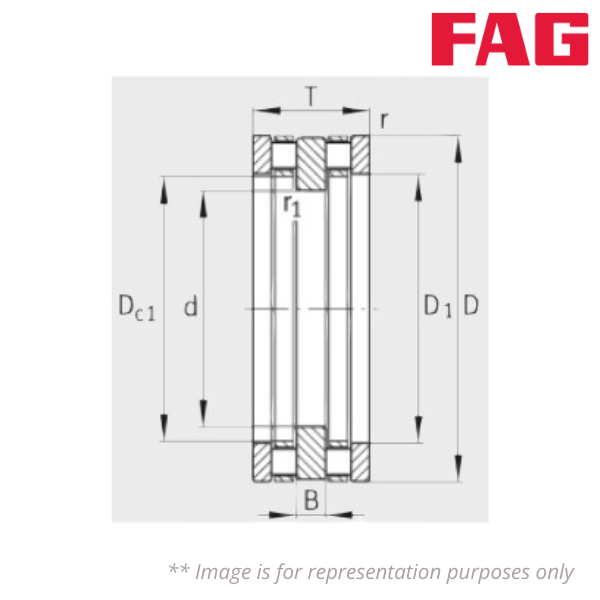

Inner Diameter (d) mm - 320
Outer Diameter (D) mm - 440
Height (T) mm - 146
Inner Width (B) mm - 38
Minimum Chamfer Dimension (r) mm - 3
Minimum Chamfer Dimension (r1) mm - 1.5
Bore Diameter Housing Washer (D1) mm - 350
Rip Diameter Shaft Washer (d1) mm - 437
Maximum Diameter of Housing Shoulder (Da) mm - 361
Maximum Recess Radius (ra) mm - 2.5
Maximum Recess Radius (ra1) mm - 1.5
Basic Dynamic Load Rating (Ca) kN - 1320
Basic Static Load Rating (C0a) kN - 5400
Fatigue Limit Load (Cua) kN - 410
Limiting Speed (nG) rpm - 800
