Description
Brand - FAG
Item Number - Z-507122.AR-MBS FAG

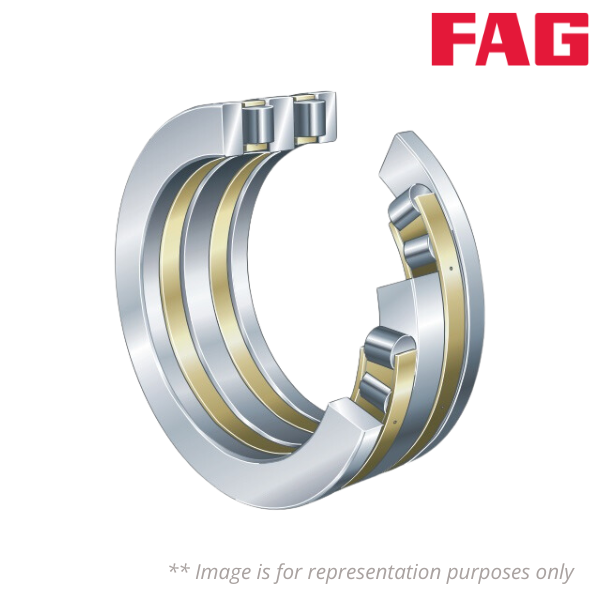

Category - Double Direction Axial Cylindrical Roller Bearing
Weight (Kg) - 37.3

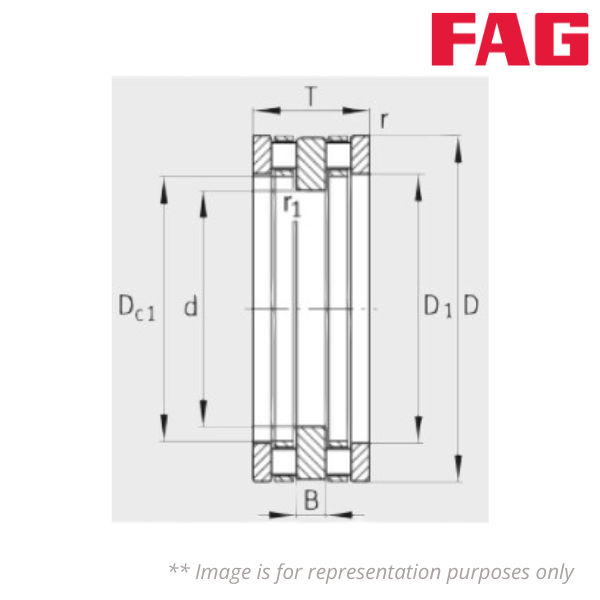

Inner Diameter (d) mm - 280
Outer Diameter (D) mm - 380
Height (T) mm - 120
Inner Width (B) mm - 32
Minimum Chamfer Dimension (r) mm - 2.1
Minimum Chamfer Dimension (r1) mm - 1.1
Bore Diameter Housing Washer (D1) mm - 304
Rip Diameter Shaft Washer (d1) mm - 378
Maximum Diameter of Housing Shoulder (Da) mm - 314
Maximum Recess Radius (ra) mm - 2
Maximum Recess Radius (ra1) mm - 1
Basic Dynamic Load Rating (Ca) kN - 980
Basic Static Load Rating (C0a) kN - 4000
Fatigue Limit Load (Cua) kN - 305
Limiting Speed (nG) rpm - 900
