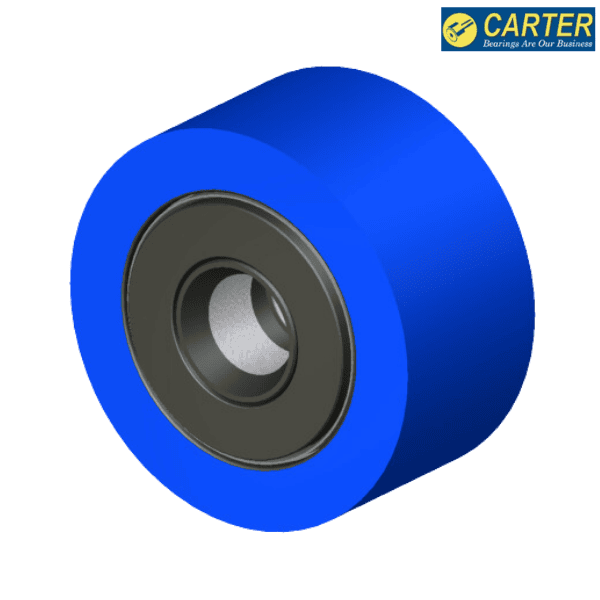

YRT-48-S CARTER

Brand - CARTER
Item Number - YRT-48-S CARTER
Category - Standard Urethane Yoke Roller

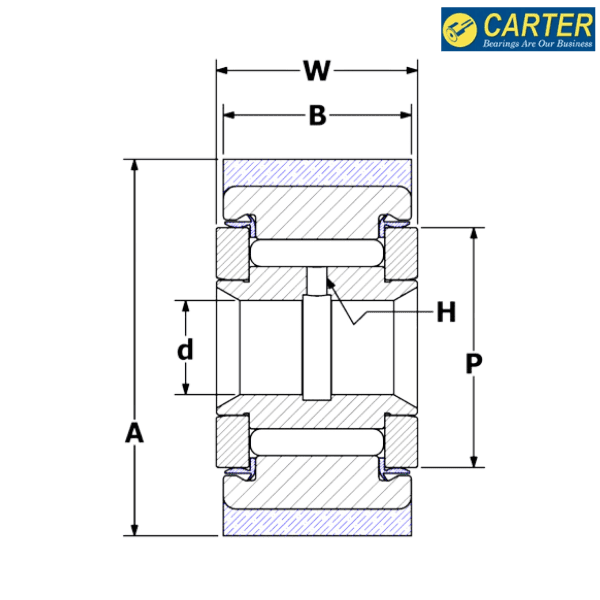

Imperial :
Roller Outer Diameter (A) inch - 1.5
Roller Width (B) inch - 0.75
Bore Diameter (D) inch - 0.375
Overall Width (W) inch - 0.813
Oil Hole Diameter (H) inch - 0.09375
Minimum Boss Diameter (P) inch - 1
Recommended Shaft Diameter (inch) - 0.3747

Metric :
Roller Outer Diameter (A) mm - 38.1
Roller Width (B) mm - 19.05
Bore Diameter (D) mm - 9.525
Overall Width (W) mm - 20.6502
Oil Hole Diameter (H) mm - 2.38125
Minimum Boss Diameter (P) mm - 25.4
Recommended Shaft Diameter (mm) - 9.51738

**Images are for representation purposes only
