Description
Brand - IKO
Item Number - YB 912 IKO

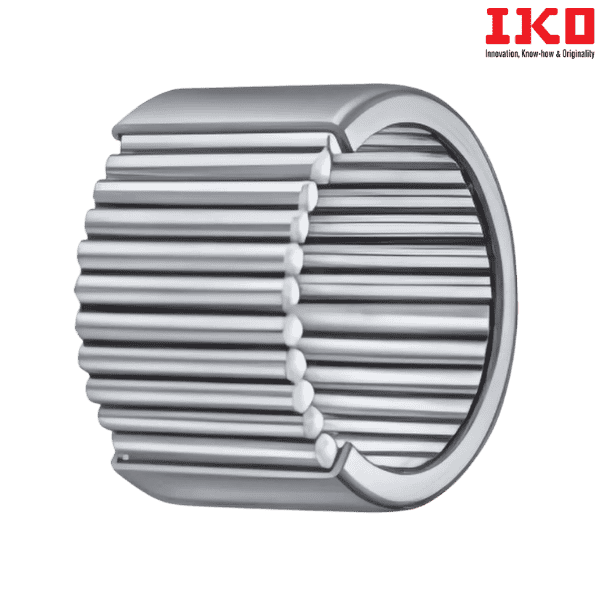

Category - Shell Type Needle Roller Bearing Inch Series (Grease Retained)
Shaft Diameter (mm) - 14.288
Shaft Diameter (inch) - 0.5625

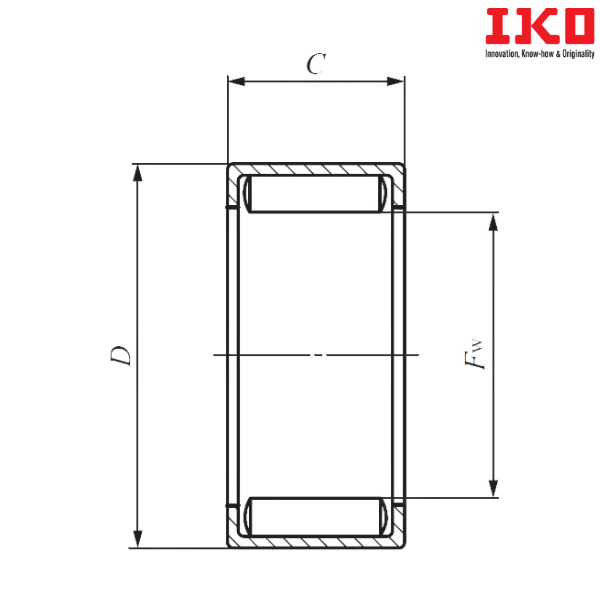

Boundary Dimension (Fw) mm - 14.288
Boundary Dimension (Fw) inch - 0.5625
Outer Diameter (D) mm - 19.05
Outer Diameter (D) inch - 0.75
Boundary Dimension (C) mm - 19.05
Boundary Dimension (C) inch - 0.75
Maximum Shaft Diameter (h6) mm - 14.288
Minimum Shaft Diameter (h6) mm - 14.277
Maximum Housing Bore Diameter (J7) mm - 19.062
Minimum Housing Bore Diameter (J7) mm - 19.041
Basic Dynamic Load Rating (C) N - 16800
Basic Static Load Rating (C0) N - 33000
Allowable Rotational Speed (min-1) - 11000
Weight (kg) - 0.0154
** Images are for representation purposes only
